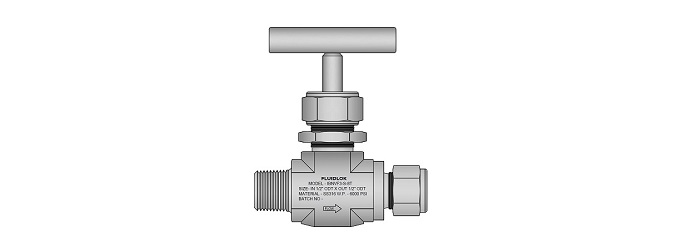

Integral Bonnet Needle Valve - NPT Male X FLUIDLOK Tube Fitting
Application:
|
Specifications:
|
|
Features:
|
Testing:
|
Integral Bonnet Needle Valve - NPT Male X FLUIDLOK Tube Fitting

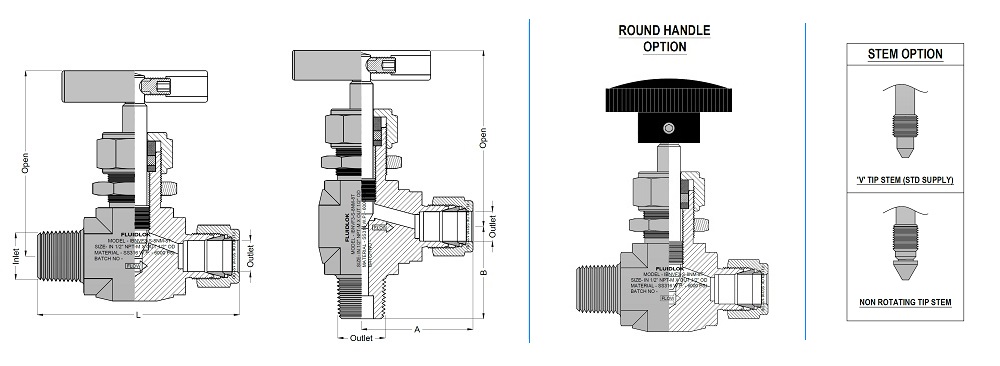

| FLUIDLOK Part Number | End Connection |
L (mm) |
A (mm) |
B (mm) |
Open (mm) |
Orifice (mm) |
Cv | ||
|---|---|---|---|---|---|---|---|---|---|
| Straight Pattern | Angle Pattern | Inlet | Outlet | ||||||
| IBNVF1-S-4NM-4T | IBNVF1-A-4NM-4T | 1/4" | 1/4" | 65.8 | 32.9 | 25.3 | 58.3 | 3.5 | -- |
| IBNVF2-S-4NM-6T | IBNVF2-A-4NM-6T | 1/4" | 3/8" | 62.9 | 34.1 | 28.8 | 63.5 | 5.0 | -- |
| IBNVF2-S-6NM-6T | IBNVF2-A-6NM-6T | 3/8" | 3/8" | 62.9 | 34.1 | 28.8 | 79.0 | 5.0 | -- |
| IBNVF2-S-6NM-8T | IBNVF2-A-6NM-8T | 3/8" | 1/2" | 65.5 | 36.7 | 28.8 | 84.2 | 5.0 | -- |
• Dimensions are for reference only. Subject to change.
