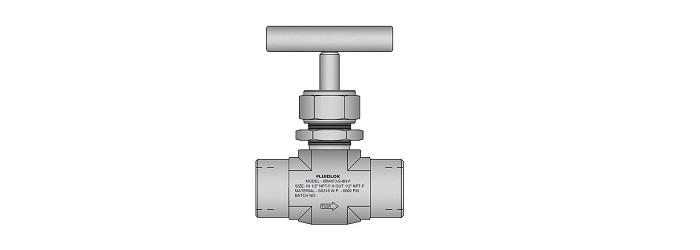

Integral Bonnet Needle Valve - Female X Female

Integral Bonnet Needle Valve - Female X Female
Product Information

Application:

  •  Wide range of general purpose in liquid & gas handling applications.







Specifications:

  • Standard pressure rating up to 6000 psi (413 bars).
  • Standard PTFE packing and optional Graphoil packing for higher temperature services.
  • Temperature rating for PTFE 450ºF (232ºC) & for Graphoil 1000ºF (538ºF).

Features:

  • Integral Bonnet Needle Valve Forged Body designed in inline & angle flow pattern.
  • Back seating of stem in fully open position prevents stem back out.
  • Standard metal seal for pressure tightness at elevated temperatures.


Testing:

  • Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
  • Pneumatic test: Seat - 1000 psi (69 bars)
  • Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

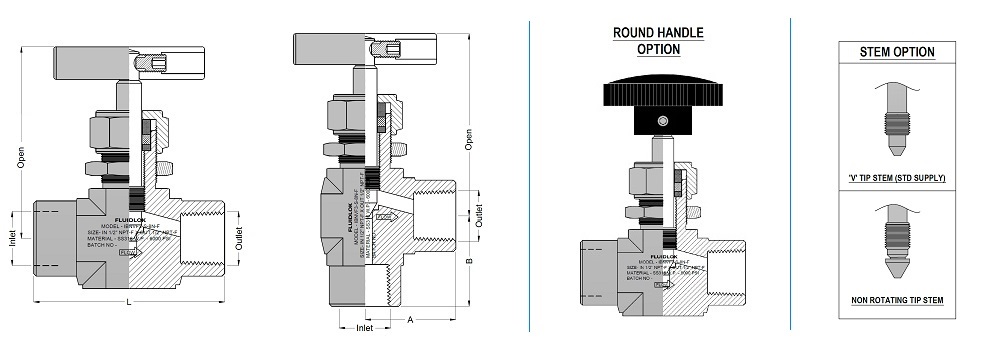

Integral Bonnet Needle Valve - Female X Female
FLUIDLOK Part Number End Connection L
(mm)		 A
(mm)		 B
(mm)		 Open
(mm)		 Orifice
(mm)		 Cv
Straight Pattern Angle Pattern Inlet Outlet
IBNVF1-S-2N-F IBNVF1-A-2N-F 1/8" NPT 1/8" NPT 42 21.0 21.0 58.3 4 0.35
IBNVF2-S-4N-F IBNVF2-A-4N-F 1/4" NPT 1/4" NPT 53 26.5 26.5 63.5 5 --
IBNVF3-S-6N-F IBNVF3-A-6N-F 3/8" NPT 3/8" NPT 65 28.8 28.8 79.0 6 0.85
IBNVF3-S-8N-F IBNVF3-A-8N-F 1/2" NPT 1/2" NPT 76 38.0 38.0 79.0 6 0.85
IBNVF4-S-12N-F IBNVF4-A-12N-F 3/4" NPT 3/4" NPT 75 37.5 37.5 84.2 8 1.20
IBNVF4-S-16N-F IBNVF4-A-16N-F 1" NPT 1" NPT 86 43.0 43.0 84.2 8 1.20
• Dimensions are for reference only. Subject to change.
