Double Block & Bleed


Application:

  • Monoflange valves are used in isolation services, pressure measurement, level measurement, and sampling.

Features:

  • One-piece ultra-slimline forged or bar-stock body combines a compact design with strength and reduces potential leak paths compared to conventional designs.
  • Bubble tight shut-off.
  • 1/2" NPT-Female thread outlet to ASME B1.20.1
  • 1/2" NPT-Female thread vent connection to ASME B1.20.1
  • Material thickness to ASME A16.34
  • Fire safe to API 607.


Specifications:

  • Pressure Temperature Rating: Working pressure #150 to #2500, up to working temperatures listed below in accordance with ASME B16.5
  • Working Temperature:
  • -58ºF to 400ºF (-50ºC to 204ºC) for stainless steel & duplex valves.
  • -50ºF to 400ºF (-46ºC to 204ºC) for carbon steel valves.

Testing:

  • All valves are 100% factory tested.
  • Shell test is performed at 1.5 times to the maximum working pressure and
  • Seat test is performed at 1.1 times to the maximum working pressure in accordance with ASME BS EN 12266-1 and API 598.

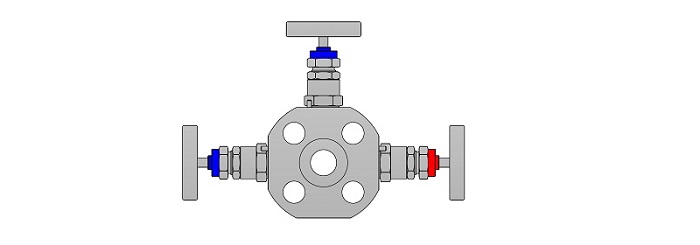

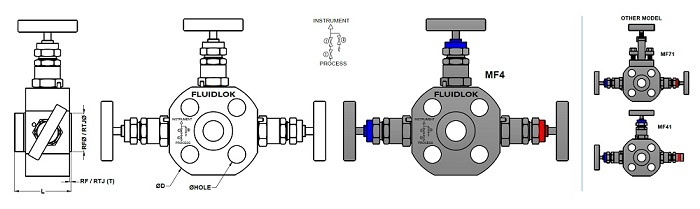

Double Block & Bleed Monoflange Valve - MF4
Size Pressure Class (lb) Ø D No of Holes Ø HOLE RF Ø RF (T) RTJ Ø RTJ (T) L
1/2" (DN 15) 150 89 4 16 34.9 1.5 -- -- 51.5
1/2" (DN 15) 300 95 4 16 34.9 1.5 50.8 5.56 51.5
1/2" (DN 15) 600 95 4 16 34.9 6.4 50.8 5.56 56.5
1/2" (DN 15) 900 / 1500 121 4 22 34.9 6.4 60.5 6.35 56.5
1/2" (DN 15) 2500 133 4 22.2 34.9 6.4 65.0 6.35 56.5
3/4" (DN 20) 150 99 4 16 43.0 1.5 -- -- 51.5
3/4" (DN 20) 300 117 4 19 43.0 1.5 63.5 6.35 51.5
3/4" (DN 20) 600 117 4 19 43.0 6.4 63.5 6.35 51.5
3/4" (DN 20) 900 / 1500 130 4 22 43.0 6.4 66.5 6.35 56.4
3/4" (DN 20) 2500 140 4 22.2 43.0 6.4 73.2 6.35 56.4
1" (DN 25) 150 108 4 16 50.8 1.5 63.5 6.35 51.5
1" (DN 25) 300 124 4 19 50.8 1.5 69.9 6.35 51.5
1" (DN 25) 600 124 4 19 50.8 6.4 69.9 6.35 56.5
1" (DN 25) 900 / 1500 149 4 25 50.8 6.4 71.4 6.35 56.5
1" (DN 25) 2500 159 4 25.4 50.8 6.4 82.6 6.35 56.5
1.1/2" (DN 40) 150 127 4 16 73.0 1.5 82.6 6.35 51.5
1.1/2" (DN 40) 300 156 4 22.2 73.0 1.5 90.4 6.35 51.5
1.1/2" (DN 40) 600 156 4 22.2 73.0 6.4 90.4 6.35 56.4
1.1/2" (DN 40) 900 / 1500 178 4 28 73.0 6.4 91.9 6.35 56.4
1.1/2" (DN 40) 2500 203 4 31.8 73.0 6.4 114.3 7.92 56.4
2" (DN 50) 150 152 4 19 92.1 1.5 101.6 7.92 51.5
2" (DN 50) 300 165 8 19 92.1 1.5 108.0 7.92 51.5
2" (DN 50) 600 165 8 19 92.1 6.4 108.0 7.92 56.5
2' (DN 50) 900 / 1500 216 8 25 92.1 6.4 123.9 7.92 56.5
2" (DN 50) 2500 235 8 28.5 92.1 6.4 133.4 7.92 56.5

• Dimensions are for reference only. Subject to change.
