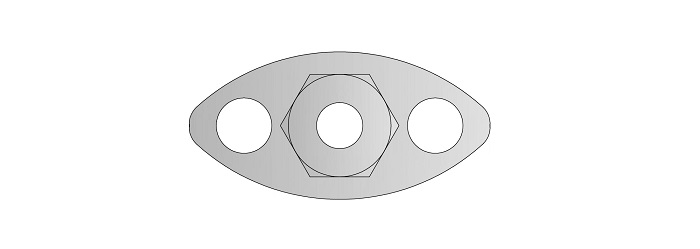

Kidney Flange


  • Features: Integral forged body.
  • Working Temperature: PTFE (-65°F to 450°F) & Graphite (-65°F to 649°F)
  • Standard Materials: ASME A182 F316.
  • Testing: All kidney flanges are 100% factory tested.
Kidney Flange
FLUIDLOK
Part Number
Type T
(End Connection)
L
(mm)

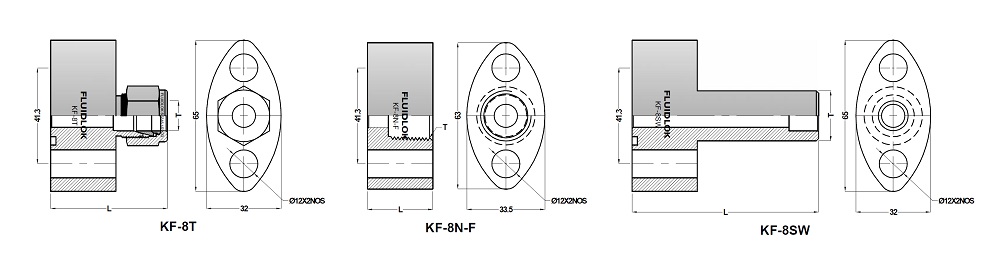

KD-8N-F Concentric 1/2" NPT-F 28.0
KD-8T Concentric 1/2" FLUIDLOK Tube Fitting 49.8
KD-12MT Concentric 12mm FLUIDLOK Tube Fitting 50.9
KD-8SW Concentric 1/2" Socket Weld 80.0
KD-E-8N-F Eccentric 1/2" NPT-F 28.0

• Flange Mounting Bolts - High Tensile Carbon Steel.
• Flange Gasket - PTFE (To oder Graphite flange seal material, add suffix 'G' after part number)

• Eccentric flange needs to be ordered in whole set.
• A whole eccentric flange set contains 2 eccentric flanges, 2 PTFE flange seal rings & 4 high tensile bolts.
