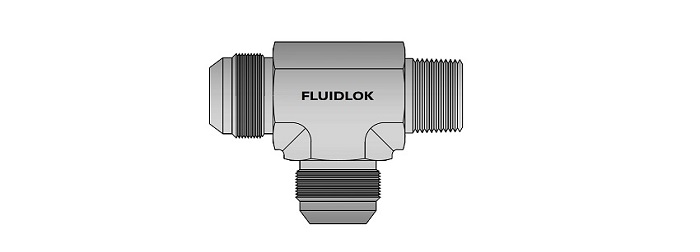

JIC Male Run Tee (Ref. 2605)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

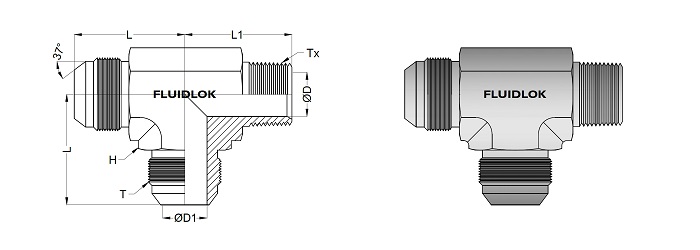

JIC Male Run Tee
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (NPT) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JMRT-3-2N | 3/16" | 3/8"-24 | 1/8" | 21.1 | 18.3 | 4.8 | 3.2 | 11/16 |
| JMRT-4-2N | 1/4" | 7/16"-20 | 1/8" | 22.6 | 19.8 | 4.8 | 4.4 | 1/2 |
| JMRT-4-2N | 1/4" | 7/16"-20 | 1/4" | 26.7 | 27.7 | 7.1 | 4.4 | 9/16 |
| JMRT-5-2N | 5/16" | 1/2"-20 | 1/8" | 24.6 | 20.6 | 4.8 | 6.0 | 9/16 |
| JMRT-5-4N | 5/16" | 1/2"-20 | 1/4" | 24.6 | 27.7 | 7.1 | 6.0 | 9/16 |
| JMRT-6-4N | 3/8" | 9/16"-18 | 1/4" | 26.9 | 27.7 | 7.5 | 7.5 | 9/16 |
| JMRT-6-6N | 3/8" | 9/16"-18 | 3/8" | 28.9 | 31.0 | 10.3 | 7.5 | 3/4 |
| JMRT-8-4N | 1/2" | 3/4"-16 | 1/4" | 31.7 | 30.2 | 7.1 | 9.9 | 3/4 |
| JMRT-8-6N | 1/2" | 3/4"-16 | 3/8" | 31.7 | 31.0 | 10.3 | 9.9 | 3/4 |
| JMRT-8-8N | 1/2" | 3/4"-16 | 1/2" | 33.8 | 37.3 | 13.5 | 9.9 | 7/8 |
| JMRT-10-8N | 5/8" | 7/8"-14 | 1/2" | 36.8 | 37.3 | 13.5 | 12.3 | 7/8 |
| JMRT-10-12N | 5/8" | 7/8"-14 | 3/4" | 39.4 | 40.4 | 18.3 | 12.3 | 1.1/16 |
| JMRT-12-8N | 3/4" | 1.1/16"-12 | 1/2" | 42.2 | 39.6 | 13.5 | 15.5 | 1.1/16 |
| JMRT-12-12N | 3/4" | 1.1/16"-12 | 3/4" | 42.2 | 40.4 | 18.3 | 15.5 | 1.1/16 |
| JMRT-14-12N | 7/8" | 1.3/16"-12 | 3/4" | 45.7 | 42.9 | 18.3 | 18.3 | 1.5/16 |
| JMRT-16-16N | 1" | 1.5/16"-12 | 1" | 46.0 | 50.0 | 23.8 | 21.4 | 1.5/16 |
| JMRT-20-20N | 1.1/4" | 1.5/8"-12 | 1.1/4" | 52.3 | 60.4 | 31.7 | 27.4 | 1.5/8 |
| JMRT-24-24N | 1.1/2" | 1.7/8"-12 | 1.1/2" | 59.2 | 67.0 | 38.1 | 33.3 | 1.7/8 |
| JMRT-32-32N | 2" | 2.1/2"-12 | 2" | 77.7 | 76.2 | 49.2 | 45.2 | 2.1/2 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JMRT-3-2N-_A).
