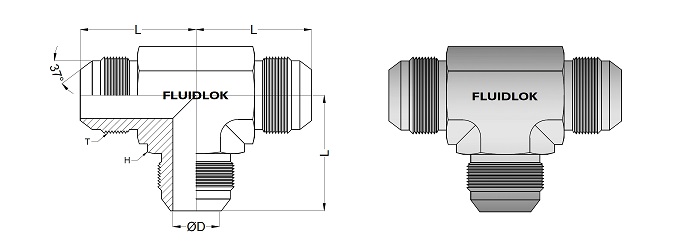

FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
---|---|---|---|---|---|
JUT-2 | 1/8" | 5/16"-24 | 19.6 | 1.6 | 11/16 |
JUT-3 | 3/16" | 3/8"-24 | 21.1 | 3.2 | 11/16 |
JUT-4 | 1/4" | 7/16"-20 | 22.6 | 4.4 | 1/2 |
JUT-5 | 5/16" | 1/2"-20 | 24.1 | 6.0 | 9/16 |
JUT-6 | 3/8" | 9/16"-18 | 26.9 | 7.5 | 9/16 |
JUT-8 | 1/2" | 3/4"-16 | 31.8 | 9.9 | 3/4 |
JUT-10 | 5/8" | 7/8"-14 | 36.8 | 12.3 | 7/8 |
JUT-12 | 3/4" | 1.1/16"-12 | 42.2 | 15.5 | 1.1/16 |
JUT-14 | 7/8" | 1.3/16"-12 | 45.7 | 18.3 | 1.5/16 |
JUT-16 | 1" | 1.5/16"-12 | 46.0 | 21.4 | 1.5/16 |
JUT-20 | 1.1/4" | 1.5/8"-12 | 52.3 | 27.4 | 1.5/8 |
JUT-24 | 1.1/2" | 1.7/8"-12 | 59.3 | 33.3 | 1.7/8 |
JUT-32 | 2" | 2.1/2"-12 | 77.7 | 45.2 | 2.1/2 |
