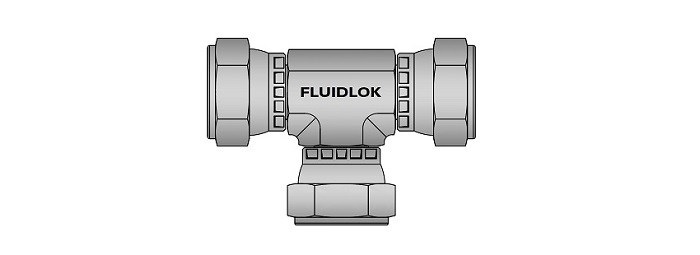

JIC Swivel Union Tee (Ref. 6606)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

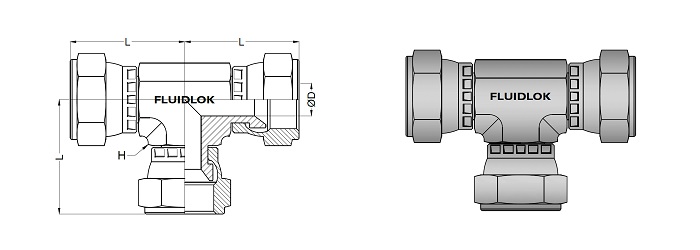

JIC Swivel Union Tee
|
FLUIDLOK Part Number |
Swivel | UNF/UN-2B |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| JSUT-4 | 1/4" | 7/16"-20 | 25.3 | 4.4 | 1/2 |
| JSUT-6 | 3/8" | 9/16"-18 | 31.8 | 7.5 | 9/16 |
| JSUT-8 | 1/2" | 9/16"-18 | 34.9 | 9.9 | 3/4 |
| JSUT-12 | 3/4" | 3/4"-16 | 44.4 | 15.5 | 1.1/16 |
| JSUT-16 | 1" | 1.1/6"-12 | 50.8 | 21.4 | 1.5/16 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
