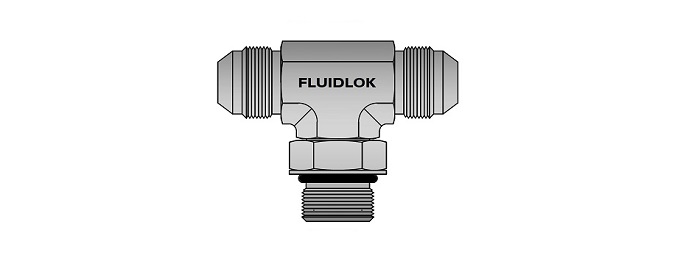

JIC Straight Thread Branch Tee (Ref. 6803)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

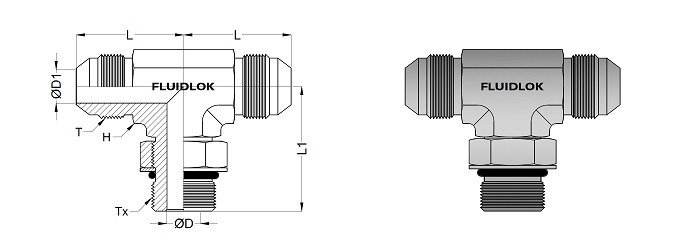

JIC Straight Thread Branch Tee
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|---|
| JSTBT-4-4UF | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 22.6 | 26.2 | 4.4 | 4.4 | 11/16 |
| JSTBT-4-6UF | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 26.7 | 31.7 | 7.5 | 4.4 | 9/16 |
| JSTBT-5-5UF | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 24.1 | 28.7 | 6.0 | 6.0 | 9/16 |
| JSTBT-6-6UF | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 26.9 | 31.7 | 7.5 | 7.5 | 9/16 |
| JSTBT-6-8UF | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 28.9 | 36.8 | 9.9 | 7.5 | 3/4 |
| JSTBT-8-6UF | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 31.7 | 33.5 | 7.5 | 9.9 | 3/4 |
| JSTBT-8-8UF | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 31.7 | 36.8 | 9.9 | 9.9 | 3/4 |
| JSTBT-8-10UF | 1/2" | 3/4"-16 | 5/8" | 7/8"-14 | 34.0 | 43.2 | 12.3 | 9.9 | 7/8 |
| JSTBT-8-12UF | 1/2" | 3/4"-16 | 3/4" | 1.1/16"-12 | 36.1 | 49.3 | 15.4 | 9.9 | 1.1/16 |
| JSTBT-10-8UF | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 36.8 | 39.1 | 9.9 | 12.3 | 7/8 |
| JSTBT-10-10UF | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 36.8 | 43.2 | 12.3 | 12.3 | 7/8 |
| JSTBT-12-10UF | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 42.2 | 45.2 | 12.3 | 15.5 | 1.1/16 |
| JSTBT-12-12UF | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 42.16 | 49.3 | 14.5 | 15.5 | 1.1/16 |
| JSTBT-12-16UF | 3/4" | 1.1/16"-12 | 1" | 1.5/16"-12 | 44.7 | 52.1 | 21.4 | 15.5 | 1.5/16 |
| JSTBT-16-12UF | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 46.0 | 52.1 | 15.4 | 21.4 | 1.5/16 |
| JSTBT-16-16UF | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 46.0 | 52.1 | 21.4 | 21.4 | 1.5/16 |
| JSTBT-20-20UF | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 52.3 | 57.1 | 27.4 | 27.4 | 1.5/8 |
| JSTBT-24-24UF | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 59.2 | 60.7 | 33.3 | 33.3 | 1.7/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JSTBT-4-4UF_A).
