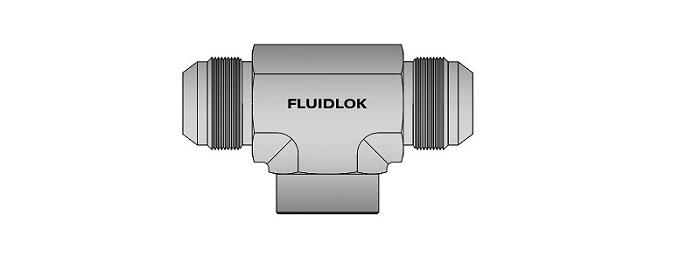

JIC Female Branch Tee (Ref. 2602)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

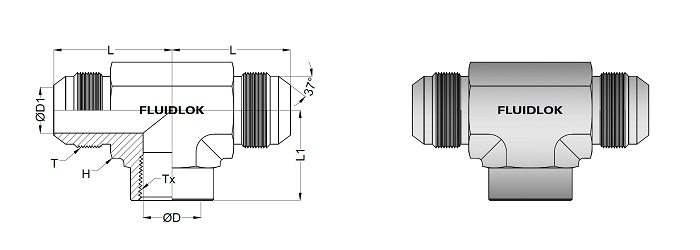

JIC Female Branch Tee
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (NPT) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JFBT-2-2N | 1/8" | 5/16"-24 | 1/8" | 25.4 | 16.8 | 8.5 | 1.6 | 9/16 |
| JFBT-4-2N | 1/4" | 7/16"-20 | 1/8" | 27.4 | 16.8 | 8.5 | 4.4 | 9/16 |
| JFBT-4-4N | 1/4" | 7/16"-20 | 1/4" | 28.7 | 22.3 | 11.0 | 4.4 | 3/4 |
| JFBT-5-2N | 5/16" | 1/2"-20 | 1/8" | 27.4 | 16.8 | 8.5 | 6.0 | 9/16 |
| JFBT-6-2N | 3/8" | 9/16"-18 | 1/8" | 31.2 | 17.0 | 8.5 | 7.5 | 5/8 |
| JFBT-6-4N | 3/8" | 9/16"-18 | 1/4" | 31.5 | 22.3 | 11.0 | 7.5 | 3/4 |
| JFBT-6-6N | 3/8" | 9/16"-18 | 3/8" | 31.2 | 25.9 | 14.5 | 7.5 | 7/8 |
| JFBT-8-6N | 1/2" | 3/4"-16 | 3/8" | 36.1 | 25.9 | 14.5 | 9.9 | 7/8 |
| JFBT-8-8N | 1/2" | 3/4"-16 | 1/2" | 36.1 | 31.2 | 17.8 | 9.9 | 1.1/16 |
| JFBT-10-8N | 5/8" | 7/8"-14 | 1/2" | 41.6 | 31.5 | 17.8 | 12.3 | 1.1/16 |
| JFBT-10-12N | 5/8" | 7/8"-14 | 3/4" | 44.9 | 35.5 | 23.2 | 12.3 | 1.3/8 |
| JFBT-12-8N | 3/4" | 1.1/16"-12 | 1/2" | 48.0 | 31.5 | 17.8 | 15.5 | 1.1/8 |
| JFBT-12-12N | 3/4" | 1.1/16"-12 | 3/4" | 48.0 | 34.5 | 23.2 | 15.5 | 1.3/8 |
| JFBT-12-16N | 3/4" | 1.1/16"-12 | 1" | 51.3 | 41.1 | 28.5 | 15.5 | 1.5/8 |
| JFBT-14-12N | 7/8" | 1.3/16"-12 | 3/4" | 47.2 | 36.1 | 23.2 | 18.3 | 1.3/8 |
| JFBT-16-12N | 1" | 1.5/16"-12 | 3/4" | 55.1 | 35.3 | 23.2 | 21.4 | 1.3/8 |
| JFBT-16-16N | 1" | 1.5/16"-12 | 1" | 55.1 | 41.1 | 28.5 | 21.4 | 1.5/8 |
| JFBT-20-20N | 1.1/4" | 1.5/8"-12 | 1.1/4" | 59.2 | 43.2 | 37.0 | 27.4 | 1.7/8 |
| JFBT-24-24N | 1.1/2" | 1.7/8"-12 | 1.1/2" | 73.4 | 52.8 | 43.8 | 33.3 | 2.1/2 |
| JFBT-32-32N | 2" | 2.1/2"-12 | 2" | 83.8 | 60.7 | 55.9 | 45.2 | 2.7/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JFBT-2-2N-_A).
