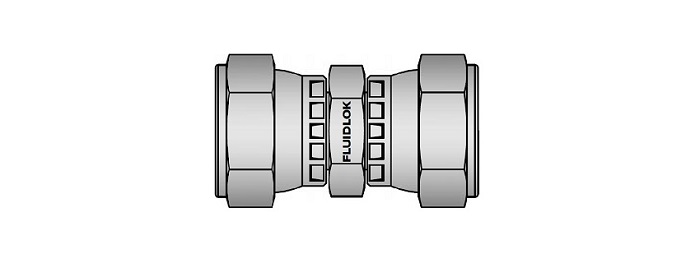

JIC Swivel Equal Union (Ref. 6565)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

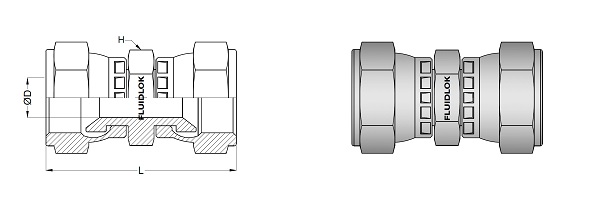

JIC Swivel Equal Union
|
FLUIDLOK Part Number |
Swivel |
T (UN/UNF-2B) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| JSEU-4 | 1/4" | 7/16"-20 | 38.1 | 9.5 | 4.4 | 7/16 |
| JSEU-5 | 5/16" | 1/2"-20 | 40.6 | 11.2 | 6 | 9/16 |
| JSEU-6 | 3/8" | 9/16"-18 | 45.2 | 12.5 | 7.5 | 9/16 |
| JSEU-8 | 1/2" | 3/4"-16 | 48.4 | 17.0 | 9.9 | 13/16 |
| JSEU-10 | 5/8" | 7/8"-14 | 61.0 | 20.0 | 12.3 | 7/8 |
| JSEU-12 | 3/4" | 1.1/16"-12 | 64.5 | 24.0 | 15 | 1.1/8 |
| JSEU-16 | 1" | 1.5/16"-12 | 69.1 | 30.0 | 21.4 | 1.3/8 |
| JSEU-20 | 1.1/4" | 1.5/8"-12 | 73.2 | 38.8 | 27.5 | 1.11/16 |
| JSEU-24 | 1.1/2" | 1.7/8"-12 | 83.5 | 45.3 | 33 | 2 |
| JSEU-32 | 2" | 2.1/2"-12 | 101.8 | 61.1 | 45 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
