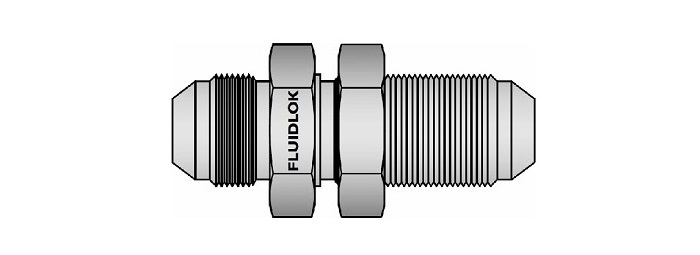

JIC Bulkhead Union (Ref. 2700)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

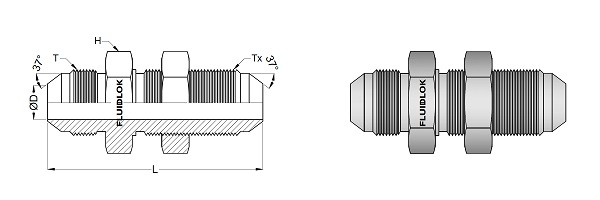

JIC Bulkhead Union
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UN/UNF-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| JBU-2 | 1/8" | 5/16"-24 | 47.5 | 1.6 | 9/16 |
| JBU-3 | 3/16" | 3/8"-24 | 48.3 | 3.2 | 5/8 |
| JBU-4 | 1/4" | 7/16"-20 | 52.6 | 4.4 | 11/16 |
| JBU-5 | 5/16" | 1/2"-20 | 52.6 | 6.0 | 3/4 |
| JBU-6 | 3/8" | 9/16"-18 | 55.4 | 7.5 | 15/16 |
| JBU-8 | 1/2" | 3/4"-16 | 62.0 | 9.9 | 1 |
| JBU-10 | 5/8" | 7/8"-14 | 69.6 | 12.3 | 1.1/8 |
| JBU-12 | 3/4" | 1.1/16"-12 | 78.5 | 15.5 | 1.3/8 |
| JBU-14 | 7/8" | 1.3/16"-12 | 79.2 | 18.3 | 1.1/2 |
| JBU-16 | 1" | 1.5/16"-12 | 79.8 | 21.4 | 1.3/8 |
| JBU-20 | 1.1/4" | 1.5/8"-12 | 84.1 | 27.4 | 1.7/8 |
| JBU-24 | 1.1/2" | 1.7/8"-12 | 89.4 | 33.3 | 2.1/8 |
| JBU-32 | 2" | 2.1/2"-12 | 106.7 | 45.2 | 2.3/4 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• All bulkhead fittings are supplied with lock nut assembled on body. • All jump sizes are available.
• To order assembled with nut & sleeve select part number, material designator
& suffix 'A' to ordering number (example: JBU-2-_A).
