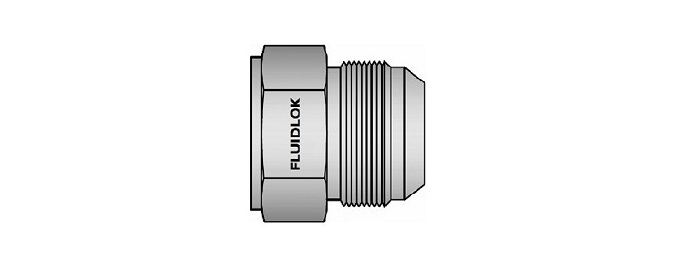

JIC Tube Reducer Form 'A' (Ref. 2406)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

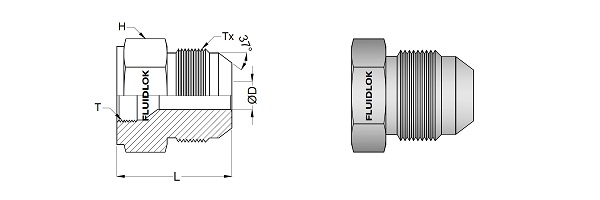

JIC Tube Reducer Form 'A'
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2B) |
Tx (Tube OD) |
Tx (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| JTR-3-4 | 3/16" | 3/8"-24 | 1/4" | 7/16"-20 | 26.7 | 3.2 | 9/16 |
| JTR-4-5 | 1/4" | 7/16"-20 | 5/16" | 1/2"-20 | 30.2 | 4.4 | 5/8 |
| JTR-4-6 | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 30.2 | 4.4 | 11/16 |
| JTR-4-8 | 1/4" | 7/16"-20 | 1/2" | 3/4"-16 | 34.0 | 4.4 | 7/8 |
| JTR-4-10 | 1/4" | 7/16"-20 | 5/8" | 7/8"-14 | 37.3 | 4.4 | 1 |
| JTR-4-12 | 1/4" | 7/16"-20 | 3/4" | 1.1/16"-12 | 38.1 | 4.4 | 1.1/4 |
| JTR-4-16 | 1/4" | 7/16"-20 | 1" | 7/16"-20 | 39.9 | 4.4 | 1.1/2 |
| JTR-6-4 | 3/8" | 9/16"-18 | 1/4" | 7/16"-20 | 29.2 | 4.4 | 5/8 |
| JTR-6-8 | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 33.3 | 7.5 | 7/8 |
| JTR-6-10 | 3/8" | 9/16"-18 | 5/8" | 7/8"-14 | 35.8 | 7.5 | 1 |
| JTR-6-12 | 3/8" | 9/16"-18 | 3/4" | 1.1/16"-12 | 37.6 | 7.5 | 1.1/4 |
| JTR-6-14 | 3/8" | 9/16"-18 | 7/8" | 1.3/16"-12 | 40.4 | 7.5 | 1.3/8 |
| JTR-6-16 | 3/8" | 9/16"-18 | 1" | 1.5/16"-12 | 40.1 | 7.5 | 1.1/2 |
| JTR-8-6 | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 32.5 | 7.5 | 4/5 |
| JTR-8-10 | 1/2" | 3/4"-16 | 5/8" | 7/8"-14 | 37.8 | 9.9 | 1 |
| JTR-8-12 | 1/2" | 3/4"-16 | 3/4" | 1.1/16"-12 | 41.4 | 9.9 | 1.1/4 |
| JTR-8-14 | 1/2" | 3/4"-16 | 7/8" | 1.3/16"-12 | 42.9 | 9.9 | 1.3/8 |
| JTR-8-16 | 1/2" | 3/4"-16 | 1" | 1.5/16"-12 | 43.7 | 9.9 | 1.1/2 |
| JTR-8-20 | 1/2" | 3/4"-16 | 1.1/4" | 1.5/8"-12 | 47.0 | 9.9 | 2.1/4 |
| JTR-10-8 | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 38.3 | 9.9 | 15/16 |
| JTR-10-12 | 5/8" | 7/8"-14 | 3/4" | 1.1/16"-12 | 42.7 | 12.3 | 1.1/4 |
| JTR-10-14 | 5/8" | 7/8"-14 | 7/8" | 1.3/16"-12 | 46.0 | 12.3 | 1.3/8 |
| JTR-10-16 | 5/8" | 7/8"-14 | 1" | 1.5/16"-12 | 46.0 | 12.3 | 1.1/2 |
| JTR-10-20 | 5/8" | 7/8"-14 | 1.1/4" | 1.5/8"-12 | 49.5 | 12.3 | 2.1/4 |
| JTR-12-8 | 3/4" | 1.1/16"-12 | 1/2" | 3/4"-16 | 41.0 | 9.9 | 1.1/8 |
| JTR-12-10 | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 43.3 | 12.3 | 1.1/8 |
| JTR-12-14 | 3/4" | 1.1/16"-12 | 7/8" | 1.5/16"-12 | 48.0 | 15.5 | 1.3/8 |
| JTR-12-16 | 3/4" | 1.1/16"-12 | 1" | 1.5/16"-12 | 49.0 | 15.5 | 1.1/2 |
| JTR-12-20 | 3/4" | 1.1/16"-12 | 1.1/4" | 1.5/8"-12 | 50.3 | 15.5 | 2 |
| JTR-12-24 | 3/4" | 1.1/16"-12 | 1.1/2" | 1.7/8"-12 | 53.6 | 15.5 | 2.1/4 |
| JTR-14-16 | 7/8" | 1.3/16"-12 | 1" | 1.5/16"-12 | 48.5 | 18.3 | 1.1/2 |
| JTR-16-8 | 1" | 1.5/16"-12 | 1/2" | 3/4"-16 | 41.0 | 9.9 | 1.3/8 |
| JTR-16-12 | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 46.2 | 15.5 | 1.3/8 |
| JTR-16-20 | 1" | 1.5/16"-12 | 1.1/4" | 1.5/8"-12 | 51.6 | 21.4 | 2 |
| JTR-16-24 | 1" | 1.5/16"-12 | 1.1/2" | 1.7/8"-12 | 54.9 | 21.4 | 2.1/4 |
| JTR-20-16 | 1.1/4" | 1.5/8"-12 | 1" | 1.5/16"-12 | 50.1 | 21.4 | 1.11/16 |
| JTR-20-24 | 1.1/4" | 1.5/8"-12 | 1.1/2" | 1.7/8"-12 | 56.1 | 27.4 | 2.1/4 |
| JTR-24-20 | 1.1/2" | 1.7/8"-12 | 1.1/4" | 1.5/8"-12 | 54.1 | 27.4 | 2 |
| JTR-24-2 | 1.1/2" | 1.7/8"-12 | 2" | 2.1/2"-12 | 67.0 | 33.3 | 2.7/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JTR-3-4-_A).
