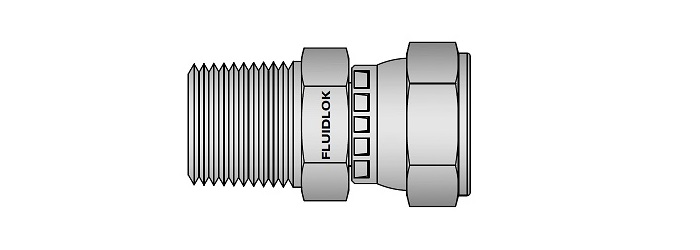

JIC Swivel Male Connector (Ref. 6505)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
JIC Swivel Male Connector
|

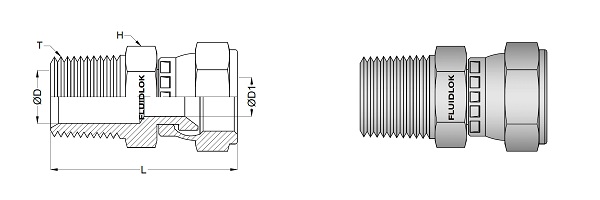

FLUIDLOK Part Number |
Swivel | UNF/UN-2B |
T (NPT) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| JSMC-2N-4 | 1/4" | 7/16"-20 | 1/8" | 33.9 | 4.7 | 4.4 | 7/16 |
| JSMC-4N-4 | 1/4" | 7/16"-20 | 1/4" | 38.7 | 7.1 | 4.4 | 9/16 |
| JSMC-4N-5 | 5/16" | 1/2"-20 | 1/4" | 41.5 | 7.1 | 6.0 | 9/16 |
| JSMC-4N-6 | 3/8" | 9/16"-18 | 1/4" | 43.5 | 7.5 | 7.5 | 9/16 |
| JSMC-6N-6 | 3/8" | 9/16"-18 | 3/8" | 43.5 | 10.3 | 7.5 | 3/4 |
| JSMC-6N-8 | 1/2" | 3/4"-16 | 3/8" | 43.8 | 10.3 | 10.3 | 13/16 |
| JSMC-6N-10 | 5/8" | 7/8"-14 | 3/8" | 48.5 | 10.3 | 12.3 | 7/8 |
| JSMC-8N-6 | 3/8" | 9/16"-18 | 1/2" | 47.1 | 13.5 | 7.5 | 7/8 |
| JSMC-8N-8 | 1/2" | 3/4"-16 | 1/2" | 48.1 | 13.5 | 9.9 | 7/8 |
| JSMC-8N-10 | 5/8" | 7/8"-14 | 1/2" | 57.9 | 13.5 | 12.3 | 15/16 |
| JSMC-8N-12 | 3/4" | 1.1/16"-12 | 1/2" | 57.4 | 13.5 | 15.5 | 1.1/8 |
| JSMC-12N-12 | 3/4" | 1.1/16"-12 | 3/4" | 57.4 | 18.3 | 15.5 | 1.1/8 |
| JSMC-16N-16 | 1" | 1.5/16"-12 | 1" | 65.0 | 23.8 | 21.4 | 1.3/8 |
| JSMC-20N-20 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 69.8 | 31.7 | 27.5 | 1.11/16 |
| JSMC-24N-24 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 76.2 | 38.1 | 33.0 | 2 |
| JSMC-32N-32 | 2" | 2.1/2"-12 | 2" | 86.6 | 49.2 | 45.0 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
