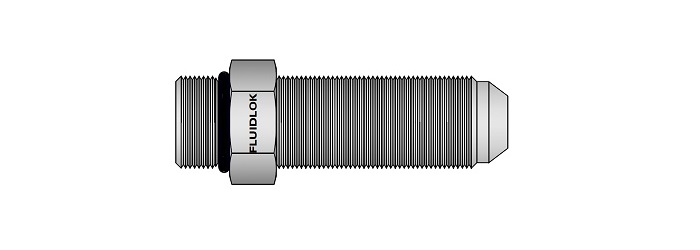

JIC Male Connector Long - UF (Ref. 6400L)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

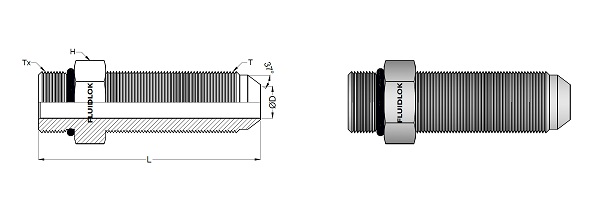

JIC Male Connector Long - UF
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| JMC-2-2UF | 1/8" | 5/16"-24 | 1/8" | 5/16"-24 | 45.5 | 1.6 | 7/16 |
| JMC-3-3UF | 3/16" | 3/8"-24 | 3/16" | 3/8"-24 | 47.5 | 3.2 | 1/2 |
| JMC-4-4UF | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 52.8 | 4.4 | 9/16 |
| JMC-5-5UF | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 54.4 | 6.0 | 5/8 |
| JMC-6-6UF | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 58.7 | 7.5 | 11/16 |
| JMC-8-8UF | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 68.6 | 9.9 | 7/8 |
| JMC-10-10UF | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 77.2 | 12.3 | 1 |
| JMC-12-12UF | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 91.7 | 16.0 | 1.1/4 |
| JMC-14-14UF | 7/8" | 1.3/16"-12 | 7/8" | 1.3/16"-12 | 96.5 | 18.3 | 1.3/8 |
| JMC-16-16UF | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 101.1 | 21.4 | 1.1/2 |
| JMC-20-20UF | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 119.1 | 27.4 | 1.7/8 |
| JMC-24-24UF | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 131.3 | 33.3 | 2.1/8 |
| JMC-32-32UF | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 159.8 | 45.2 | 2.3/4 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JMC-2-2UF-_A).
