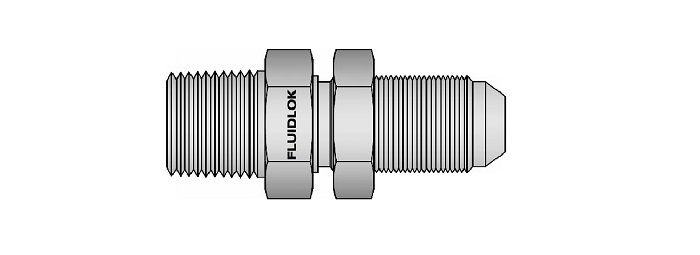

JIC Bulkhead Male Connector (Ref. 2706)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

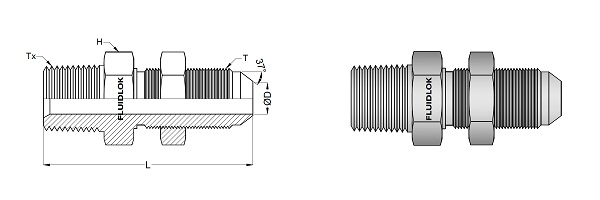

JIC Bulkhead Male Connector
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| JBFC-2N-4 | 1/4" | 7/16"-20 | 1/8" | 45.7 | 4.4 | 11/16 |
| JBFC-4N-4 | 1/4" | 7/16"-20 | 1/4" | 61.6 | 4.4 | 3/4 |
| JBFC-4N-6 | 3/8" | 9/16"-18 | 1/4" | 55.6 | 7.5 | 13/16 |
| JBFC-6N-6 | 3/8" | 9/16"-18 | 3/8" | 56.4 | 7.5 | 13/16 |
| JBFC-6N-8 | 1/2" | 3/4"-16 | 3/8" | 61.5 | 9.9 | 1 |
| JBFC-8N-8 | 1/2" | 3/4"-16 | 1/2" | 66.0 | 9.9 | 1 |
| JBFC-8N-10 | 5/8" | 7/8"-14 | 1/2" | 69.1 | 12.3 | 1.1/8 |
| JBFC-12N-12 | 3/4" | 1.1/16"-12 | 3/4" | 74.4 | 15.5 | 1.3/8 |
| JBFC-16N-16 | 1" | 1.5/16"-12 | 1" | 79.0 | 21.4 | 1.5/8 |
| JBFC-20N-20 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 84.3 | 27.4 | 1.7/8 |
| JBFC-24N-24 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 87.4 | 33.3 | 2.1/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• All bulkhead fittings are supplied with lock nut assembled on body. • All jump sizes are available.
• To order assembled with nut & sleeve select part number, material designator
& suffix 'A' to ordering number (example: JBFC-2N-4-_A).
