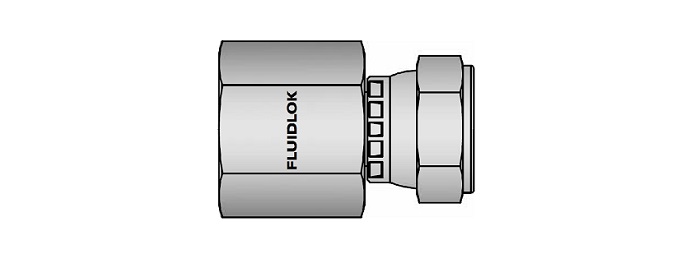

JIC Swivel Female Connector - NPT (Ref. 6506)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

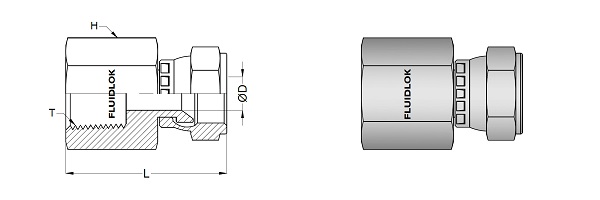

JIC Swivel Female Connector - NPT
|
FLUIDLOK Part Number |
T (NPT) |
Swivel | UNF/UN-2B |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| JSFC-2N-4 | 1/8" | 1/4" | 7/16"-20 | 30.1 | 4.4 | 9/16 |
| JSFC-4N-4 | 1/4" | 1/4" | 7/16"-20 | 36.2 | 4.4 | 3/4 |
| JSFC-4N-6 | 1/4" | 3/8" | 9/16"-18 | 38.2 | 7.5 | 3/4 |
| JSFC-6N-6 | 3/8" | 3/8" | 9/16"-18 | 41.2 | 7.5 | 7/8 |
| JSFC-6N-8 | 3/8" | 1/2" | 3/4"-16 | 40.7 | 9.9 | 7/8 |
| JSFC-8N-6 | 1/2" | 3/8" | 9/16"-18 | 47.3 | 7.5 | 1.1/8 |
| JSFC-8N-8 | 1/2" | 1/2" | 3/4"-16 | 48.3 | 9.9 | 1.1/8 |
| JSFC-8N-10 | 1/2" | 5/8" | 7/8"-14 | 52.8 | 12.3 | 1.3/8 |
| JSFC-8N-12 | 1/2" | 3/4" | 1.1/16"-12 | 52.5 | 15.5 | 1.3/8 |
| JSFC-12N-10 | 3/4" | 5/8" | 7/8"-14 | 53.8 | 12.3 | 1.3/8 |
| JSFC-12N-12 | 3/4" | 3/4" | 1.1/16"-12 | 54.1 | 15.5 | 1.3/8 |
| JSFC-12N-16 | 3/4" | 1" | 1.5/16"-12 | 55.9 | 21.4 | 1.3/8 |
| JSFC-16N-16 | 1" | 1" | 1.5/16"-12 | 66.6 | 21.4 | 1.5/8 |
| JSFC-20N-20 | 1.1/4" | 1.1/4" | 1.5/8"-12 | 69.9 | 27.5 | 2 |
| JSFC-24N-24 | 1.1/2" | 1.1/2" | 1.7/8"-12 | 75.6 | 33.0 | 2.3/8 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
