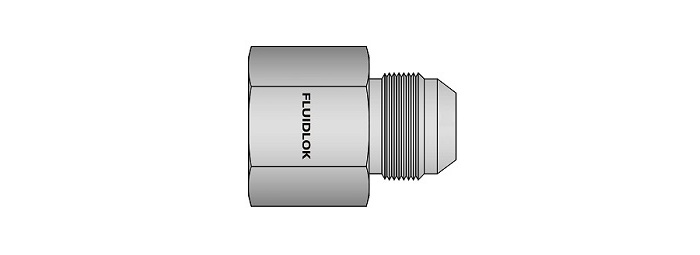

JIC Female Connector (Ref. 2405)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

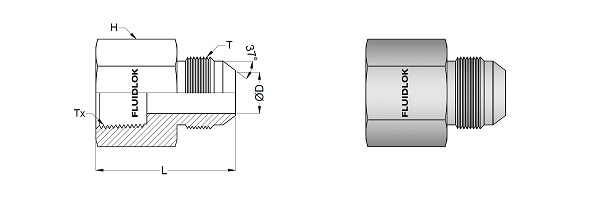

JIC Female Connector
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (NPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| JFC-2-2N | 1/8" | 5/16"-24 | 1/8" | 28.4 | 1.6 | 9/16 |
| JFC-3-2N | 3/16" | 3/8"-24 | 1/8" | 28.7 | 3.2 | 9/16 |
| JFC-4-2N | 1/4" | 7/16"-20 | 1/8" | 30.2 | 4.4 | 9/16 |
| JFC-4-4N | 1/4" | 7/16"-20 | 1/4" | 36.1 | 4.4 | 3/4 |
| JFC-4-6N | 1/4" | 7/16"-20 | 3/8" | 36.8 | 4.4 | 7/8 |
| JFC-5-2N | 5/16" | 1/2"-20 | 1/8" | 29.7 | 6.0 | 9/16 |
| JFC-5-4N | 5/16" | 1/2"-20 | 1/4" | 35.6 | 6.0 | 3/4 |
| JFC-6-2N | 3/8" | 9/16"-18 | 1/8" | 30.2 | 7.5 | 5/8 |
| JFC-6-4N | 3/8" | 9/16"-18 | 1/4" | 35.6 | 7.5 | 3/4 |
| JFC-6-6N | 3/8" | 9/16"-18 | 3/8" | 37.1 | 7.5 | 7/8 |
| JFC-6-8N | 3/8" | 9/16"-18 | 1/2" | 43.2 | 7.5 | 1.1/8 |
| JFC-8-4N | 1/2" | 3/4"-16 | 1/4" | 39.4 | 9.9 | 13/16 |
| JFC-8-6N | 1/2" | 3/4"-16 | 3/8" | 39.6 | 9.9 | 7/8 |
| JFC-8-8N | 1/2" | 3/4"-16 | 1/2" | 28.6 | 9.9 | 1.1/8 |
| JFC-8-12N | 1/2" | 3/4"-16 | 3/4" | 45.7 | 9.9 | 1.3/8 |
| JFC-10-6N | 5/8" | 7/8"-14 | 3/8" | 42.4 | 12.3 | 15/16 |
| JFC-10-8N | 5/8" | 7/8"-14 | 1/2" | 48.0 | 12.3 | 1.1/8 |
| JFC-10-12N | 5/8" | 7/8"-14 | 3/4" | 49.5 | 12.3 | 1.3/8 |
| JFC-12-8N | 3/4" | 1.1/16"-12 | 1/2" | 52.1 | 15.5 | 1.1/8 |
| JFC-12-12N | 3/4" | 1.1/16"-12 | 3/4" | 52.3 | 15.5 | 1.3/8 |
| JFC-12-16N | 3/4" | 1.1/16"-12 | 1" | 49.5 | 15.5 | 1.5/8 |
| JFC-14-12N | 7/8" | 1.3/16"-12 | 3/4" | 52.3 | 18.3 | 1.3/8 |
| JFC-16-12N | 1" | 1.5/16"-12 | 3/4" | 59.7 | 21.4 | 1.3/8 |
| JFC-16-16N | 1" | 1.5/16"-12 | 1" | 59.7 | 21.4 | 1.5/8 |
| JFC-16-20N | 1" | 1.5/16"-12 | 1.1/4" | 61.7 | 21.4 | 2 |
| JFC-20-16N | 1.1/4" | 1.5/8"-12 | 1" | 63.2 | 27.4 | 1.3/4 |
| JFC-20-20N | 1.1/4" | 1.5/8"-12 | 1.1/4" | 63.2 | 27.4 | 2 |
| JFC-20-24N | 1.1/4" | 1.5/8"-12 | 1.1/2" | 63.7 | 27.4 | 2.3/8 |
| JFC-24-20N | 1.1/2" | 1.7/8"-12 | 1.1/4" | 65.8 | 33.3 | 2.3/8 |
| JFC-24-24N | 1.1/2" | 1.7/8"-12 | 1.1/2" | 66.5 | 33.3 | 2.3/8 |
| JFC-32-24N | 2" | 2.1/2"-12 | 1.1/2" | 74.9 | 45.2 | 2.7/8 |
| JFC-32-32N | 2" | 2.1/2"-12 | 2" | 75.4 | 45.2 | 2.7/8 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JFC-2-2N-_A).
