JIC Bulkhead Female Connector (Ref. 2705)


  • Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
  • Size Range: 1/8” to 2” & 6mm to 50mm.
  • Materials: SS, CS, Brass, etc.
  • Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

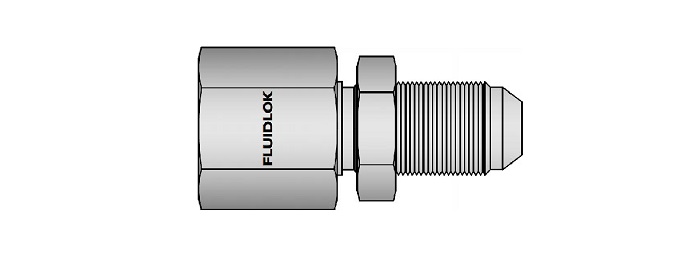

JIC Bulkhead Female Connector
FLUIDLOK

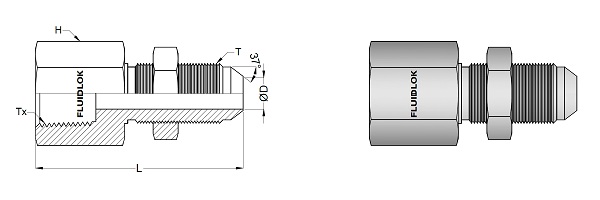

Part Number
T
(JIC Tube OD)
T
(UNF/UN-2A)
Tx
(NPT)
L
(mm)
∅ D
(mm)
H
(Inch)
JBFC-2N-4 1/4" 7/16"-20 1/8" 46.7 4.4 11/16
JBFC-4N-4 1/4" 7/16"-20 1/4" 53.1 4.4 3/4
JBFC-4N-6 3/8" 9/16"-18 1/4" 53.8 7.5 13/16
JBFC-6N-6 3/8" 9/16"-18 3/8" 56.4 7.5 1
JBFC-6N-8 1/2" 3/4"-16 3/8" 59.4 9.9 1
JBFC-8N-8 1/2" 3/4"-16 1/2" 65.8 9.9 1.1/8
JBFC-8N-10 5/8" 7/8"-14 1/2" 66.5 12.3 1.1/8
JBFC-12N-12 3/4" 1.1/16"-12 3/4" 75.9 15.5 1.3/8
JBFC-12N-14 7/8" 1.3/16"-12 3/4" 74.2 18.3 1.3/8
JBFC-16N-16 1" 1.5/16"-12 1" 82.5 21.4 1.5/8
JBFC-20N-20 1.1/4" 1.5/8"-12 1.1/4" 81.8 27.4 2
JBFC-24N-24 1.1/2" 1.7/8"-12 1.1/2" 84.6 33.3 2.3/8

• JIC 37º Flare Tube Fittings are available for metric tubing also.                                                                                            • Dimensions are for reference only. Subject to change.
• All bulkhead fittings are supplied with lock nut assembled on body.                                                                                      • All jump sizes are available.
• To order assembled with nut & sleeve select part number, material designator
  & suffix 'A' to ordering number (example: JBFC-2N-4-_A).
