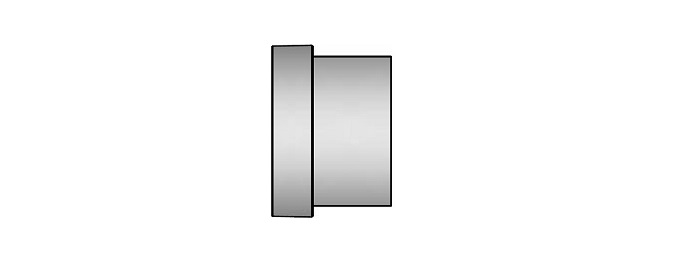

JIC Tube Sleeve (Ref. 0319)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

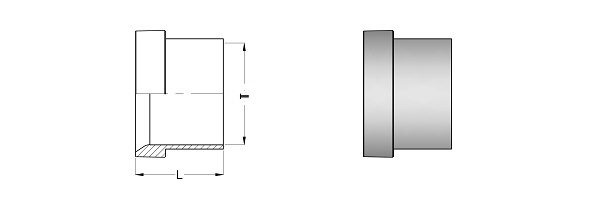

JIC Tube Sleeve
|
FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
|---|---|---|
| JSL-2 | 1/8" | 8.6 |
| JSL-3 | 3/16" | 8.6 |
| JSL-4 | 1/4" | 10.4 |
| JSL-5 | 5/16" | 11.2 |
| JSL-6 | 3/8" | 12.7 |
| JSL-8 | 1/2" | 14.2 |
| JSL-10 | 5/8" | 16.8 |
| JSL-12 | 3/4" | 17.3 |
| JSL-14 | 7/8" | 19.3 |
| JSL-16 | 1" | 19.8 |
| JSL-20 | 1.1/4" | 23.1 |
| JSL-24 | 1.1/2" | 28.4 |
| JSL-32 | 2" | 30.2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
