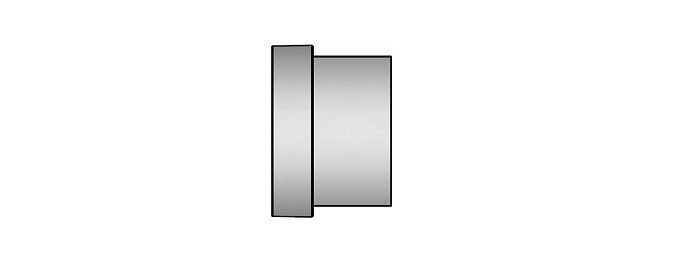

JIC Tube Sleeve Metric
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
JIC Tube Sleeve Metric
|

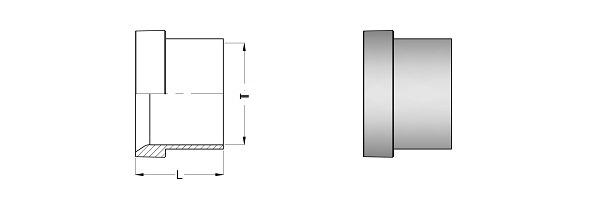

FLUIDLOK Part Number |
T (Tube OD) |
L (mm) |
|---|---|---|
| JSL-6M | 6 mm | 10.4 |
| JSL-8M | 8 mm | 11.2 |
| JSL-10M | 10 mm | 12.7 |
| JSL-12M | 12 mm | 14.2 |
| JSL-16M | 16 mm | 16.8 |
| JSL-20M | 20 mm | 17.3 |
| JSL-25M | 25 mm | 19.8 |
| JSL-30M | 30 mm | 23.0 |
| JSL-32M | 32 mm | 23.0 |
| JSL-38M | 38 mm | 28.5 |
| JSL-50M | 50 mm | 30.2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
