JIC Tube Short Nut (Ref. 0318)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

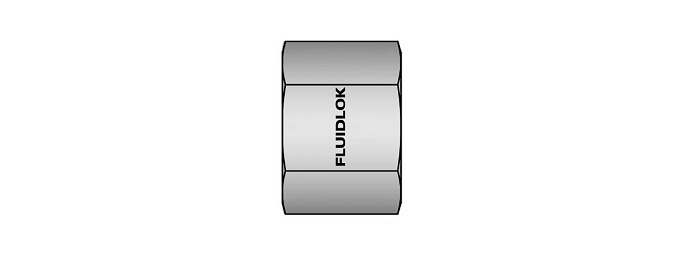

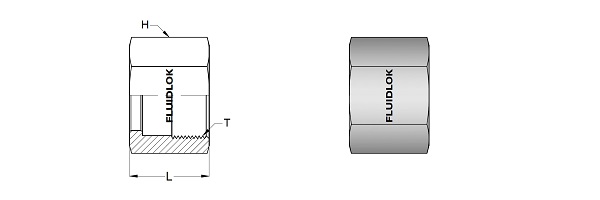

JIC Tube Short Nut
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2B) |
L (mm) |
H (Inch) |
|---|---|---|---|---|
| JN-2 | 1/8" | 5/16"-24 | 14.0 | 3/8 |
| JN-3 | 3/16" | 3/8"-24 | 15.5 | 11/16 |
| JN-4 | 1/4" | 7/16"-20 | 15.8 | 9/16 |
| JN-5 | 5/16" | 1/2"-20 | 17.3 | 5/8 |
| JN-6 | 3/8" | 9/16"-18 | 18.5 | 15/16 |
| JN-8 | 1/2" | 3/4"-16 | 21.6 | 7/8 |
| JN-10 | 5/8" | 7/8"-14 | 24.9 | 1 |
| JN-12 | 3/4" | 1.1/16"-12 | 26.2 | 1.1/4 |
| JN-14 | 7/8" | 1.3/16"-12 | 27.7 | 1.3/8 |
| JN-16 | 1" | 1.5/16"-12 | 28.7 | 1.1/2 |
| JN-20 | 1.1/4" | 1.5/8"-12 | 31.2 | 2 |
| JN-24 | 1.1/2" | 1.7/8"-12 | 36.1 | 2.1/4 |
| JN-32 | 2" | 2.1/2"-12 | 44.5 | 2.7/8 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
