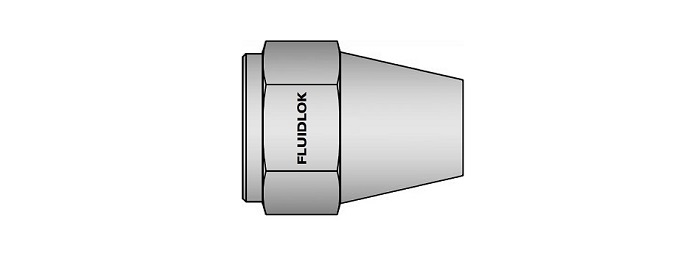

JIC Tube Long Nut (Ref. 0304)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

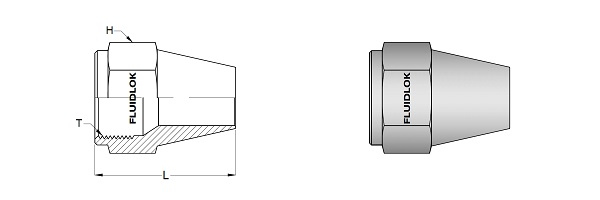

JIC Tube Long Nut
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2B) |
L (mm) |
H (Inch) |
|---|---|---|---|---|
| JLN-2 | 1/8" | 5/16"-24 | 21.3 | 3/8 |
| JLN-3 | 3/16" | 3/8"-24 | 23.9 | 11/16 |
| JLN-4 | 1/4" | 7/16"-20 | 25.4 | 9/16 |
| JLN-5 | 5/16" | 1/2"-20 | 26.9 | 5/8 |
| JLN-6 | 3/8" | 9/16"-18 | 27.7 | 15/16 |
| JLN-8 | 1/2" | 3/4"-16 | 32.5 | 7/8 |
| JLN-10 | 5/8" | 7/8"-14 | 37.6 | 1 |
| JLN-12 | 3/4" | 1.1/16"-12 | 42.2 | 1.1/4 |
| JLN-16 | 1" | 1.5/16"-12 | 49.3 | 1.1/2 |
| JLN-20 | 1.1/4" | 1.5/8"-12 | 55.6 | 2 |
| JLN-24 | 1.1/2" | 1.7/8"-12 | 58.7 | 2.1/4 |
| JLN-32 | 2" | 2.1/2"-12 | 69.8 | 2.7/8 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
