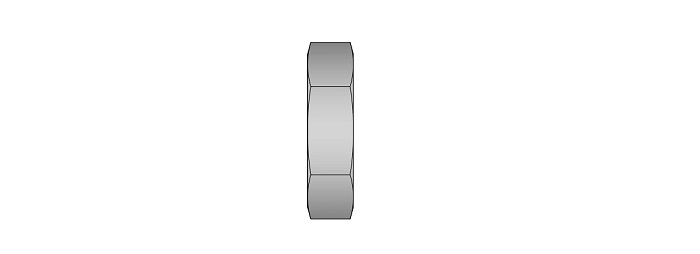

Adjustable Lock Nut (Ref. 0306N)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

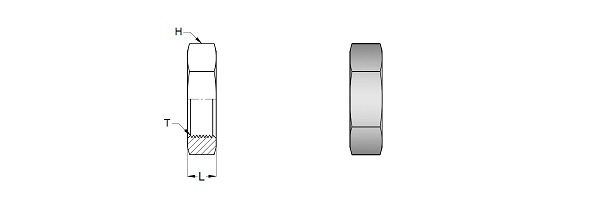

Adjustable Lock Nut
|
FLUIDLOK Part Number |
T |
T (UNF/UN-2B) |
L (mm) |
H (Inch) |
|---|---|---|---|---|
| ALN-2UF | 1/8" | 5/16"-24 | 5.6 | 7/16 |
| ALN-3UF | 3/16" | 3/8"-24 | 5.6 | 1/2 |
| ALN-4UF | 1/4" | 7/16"-20 | 7.1 | 9/16 |
| ALN-5UF | 5/16" | 1/2"-20 | 7.1 | 5/8 |
| ALN-6UF | 3/8" | 9/16"-18 | 6.9 | 11/16 |
| ALN-8UF | 1/2" | 3/4"-16 | 7.9 | 7/8 |
| ALN-10UF | 5/8" | 7/8"-14 | 9.1 | 1 |
| ALN-12UF | 3/4" | 1.1/16"-12 | 10.4 | 1.1/4 |
| ALN-14UF | 7/8" | 1.3/16"-12 | 10.4 | 1.3/8 |
| ALN-16UF | 1" | 1.5/16"-12 | 10.4 | 1.1/2 |
| ALN-20UF | 1.1/4" | 1.5/8"-12 | 10.4 | 1.7/8 |
| ALN-24UF | 1.1/2" | 1.7/8"-12 | 10.4 | 2.1/8 |
| ALN-32UF | 2" | 2.1/2"-12 | 10.4 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
