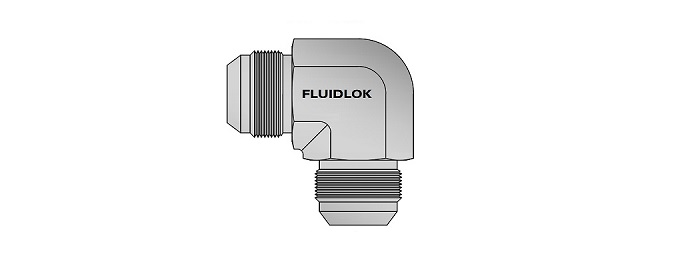

JIC Union Elbow (Ref. 2500)


  • Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
  • Size Range: 1/8” to 2” & 6mm to 50mm.
  • Materials: SS, CS, Brass, etc.
  • Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
JIC Union Elbow
FLUIDLOK

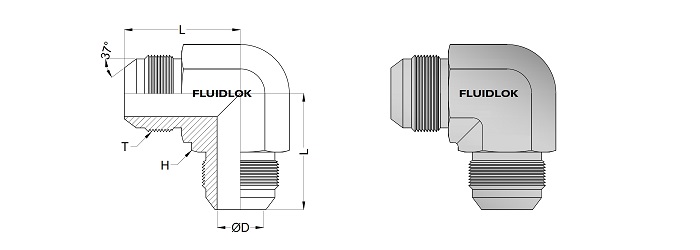

Part Number
T
(Tube OD)
T
(UNF/UN-2A)
L
(mm)
∅ D
(mm)
H
(Inch)
JUE-2 1/8" 5/16"-24 19.6 1.6 11/16
JUE-3 3/16" 3/8"-24 21.1 3.2 11/16
JUE-4 1/4" 7/16"-20 22.6 4.4 1/2
JUE-5 5/16" 1/2"-20 24.1 6.0 9/16
JUE-6 3/8" 9/16"-18 26.9 7.5 9/16
JUE-8 1/2" 3/4"-16 31.8 9.9 3/4
JUE-10 5/8" 7/8"-14 36.8 12.3 7/8
JUE-12 3/4" 1.1/16"-12 42.2 15.5 1.1/16
JUE-14 7/8" 1.3/16"-12 45.7 18.3 1.5/16
JUE-16 1" 1.5/16"-12 46.0 21.4 1.5/16
JUE-20 1.1/4" 1.5/8"-12 52.3 27.4 1.5/8
JUE-24 1.1/2" 1.7/8"-12 59.3 33.3 1.7/8
JUE-32 2" 2.1/2"-12 77.7 45.2 2.1/2

• JIC 37º Flare Tube Fittings are available for metric tubing also.                                                                                            • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator                                                                    • All jump sizes are available.
  & suffix 'A' to ordering number (example: JUE-2-_A).
