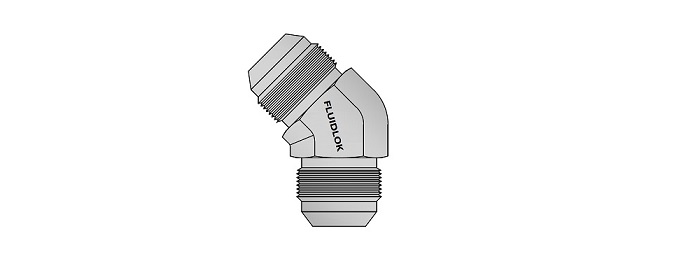

JIC Union Elbow 45° (Ref. 2504)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

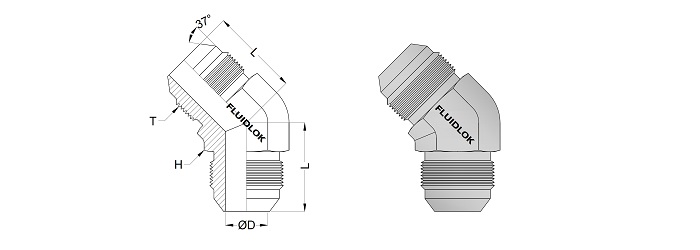

JIC Union Elbow 45°
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| JUE-3-45 | 3/16" | 3/8"-24 | 17.3 | 3.2 | 11/16 |
| JUE-4-45 | 1/4" | 7/16"-20 | 18.3 | 4.4 | 1/2 |
| JUE-6-45 | 3/8" | 9/16"-18 | 20.8 | 4.4 | 9/16 |
| JUE-8-45 | 1/2" | 3/4"-16 | 24.8 | 9.9 | 3/4 |
| JUE-10-45 | 5/8" | 7/8"-14 | 24.9 | 12.3 | 7/8 |
| JUE-12-45 | 3/4" | 1.1/16"-12 | 32.5 | 15.5 | 1.1/16 |
| JUE-16-45 | 1" | 1.5/16"-12 | 37.3 | 21.4 | 1.5/16 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JUE-3-_A).
