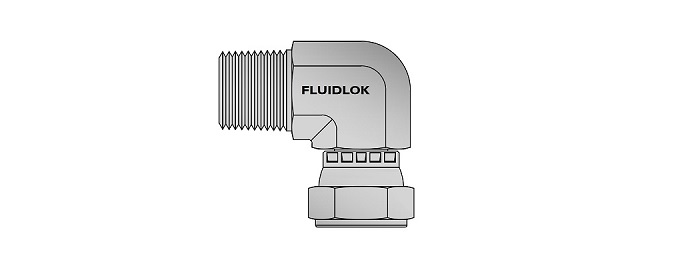

JIC Swivel Male Elbow (Ref. 6501)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

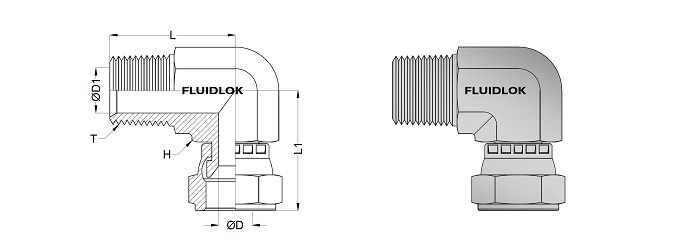

JIC Swivel Male Elbow
|
FLUIDLOK Part Number |
T (NPT) |
Swivel | UNF/UN-2B |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JSME-2N-4 | 1/8" | 1/4" | 7/16"-20 | 19.8 | 25.2 | 4.4 | 4.8 | 11/16 |
| JSME-4N-4 | 1/4" | 1/4" | 7/16"-20 | 27.7 | 28.0 | 4.4 | 7.1 | 9/16 |
| JSME-4N-6 | 1/4" | 3/8" | 9/16"-18 | 27.7 | 31.8 | 7.5 | 7.1 | 9/16 |
| JSME-6N-6 | 3/8" | 3/8" | 9/16"-18 | 31.0 | 34.1 | 7.5 | 10.3 | 3/4 |
| JSME-6N-8 | 3/8" | 1/2" | 3/4"-16 | 31.0 | 35.1 | 9.9 | 10.3 | 3/4 |
| JSME-8N-8 | 1/2" | 1/2" | 3/4"-16 | 37.3 | 36.4 | 9.9 | 13.5 | 7/8 |
| JSME-12N-12 | 3/4" | 3/4" | 1.1/16"-12 | 40.4 | 44.4 | 15.5 | 18.3 | 1.1/16 |
| JSME-16N-16 | 1" | 1" | 1.5/16"-12 | 50.0 | 50.8 | 21.4 | 23.8 | 1.5/16 |
| JSME-20N-20 | 1.1/4" | 1.1/4" | 1.5/8"-12 | 60.4 | 58.5 | 27.5 | 31.7 | 1.5/8 |
| JSME-24N-24 | 1.1/2" | 1.1/2" | 1.7/8"-12 | 67.0 | 67.5 | 33.0 | 38.1 | 1.7/8 |
| JSME-32N-32 | 2" | 2" | 2.1/2"-12 | 76.2 | 81.3 | 45.0 | 49.2 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
