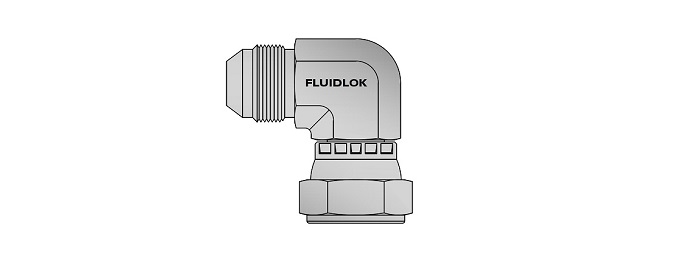

JIC Swivel Elbow (Ref. 6500)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

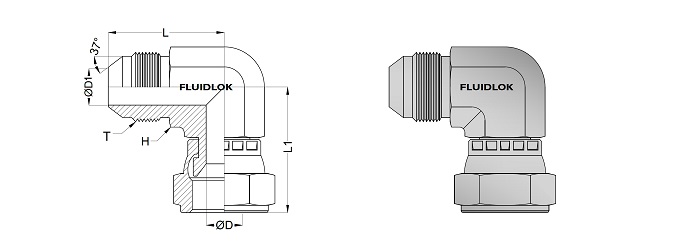

JIC Swivel Elbow
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Swivel | UNF/UN-2B |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|---|
| JSE-4-4 | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 22.6 | 25.2 | 4.4 | 4.4 | 11/16 |
| JSE-5-5 | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 25.9 | 28.5 | 6.0 | 6.0 | 9/16 |
| JSE-6-6 | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 26.9 | 31.8 | 7.5 | 7.5 | 9/16 |
| JSE-8-6 | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 31.7 | 34.1 | 7.5 | 9.9 | 3/4 |
| JSE-8-8 | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 31.7 | 34.9 | 9.9 | 9.9 | 3/4 |
| JSE-10-10 | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 36.8 | 41.1 | 12.3 | 12.3 | 7/8 |
| JSE-12-12 | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 42.2 | 44.4 | 15.5 | 15.5 | 1.1/16 |
| JSE-12-24 | 3/4" | 1.1/16"-12 | 1.1/2" | 1.7/8"-12 | 53.6 | 67.5 | 33.0 | 15.5 | 1.7/8 |
| JSE-16-12 | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 46.0 | 49.1 | 15.5 | 21.4 | 1.5/16 |
| JSE-16-16 | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 46.0 | 50.8 | 21.4 | 21.4 | 1.5/16 |
| JSE-20-20 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 52.3 | 58.5 | 27.4 | 27.4 | 1.5/8 |
| JSE-24-24 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 59.2 | 67.5 | 33.0 | 33.3 | 1.7/8 |
| JSE-32-32 | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 77.7 | 81.3 | 45.0 | 45.2 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
