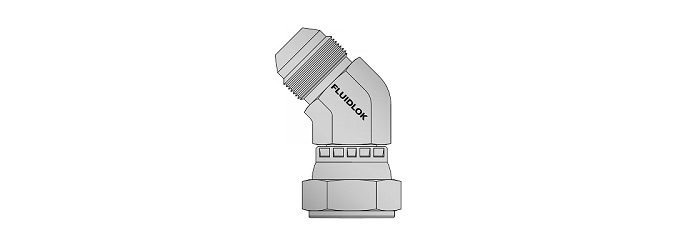

JIC Swivel Elbow 45° (Ref. 6502)

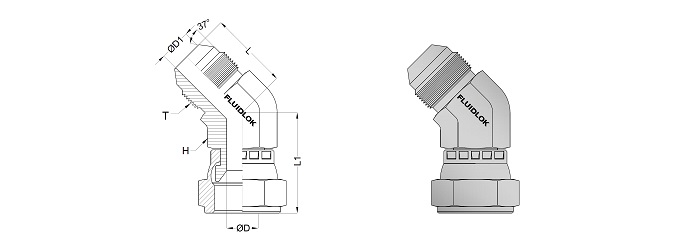

JIC Swivel Elbow 45°
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Swivel | UNF/UN-2B |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|---|
| JSE-4-4-45 | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 18.3 | 23.9 | 4.4 | 4.4 | 1/2 |
| JSE-5-5-45 | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 19.5 | 25.4 | 6.0 | 6.0 | 9/16 |
| JSE-6-6-45 | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 21.1 | 28.4 | 7.5 | 7.5 | 9/16 |
| JSE-8-8-45 | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 24.9 | 31.7 | 9.9 | 9.9 | 3/4 |
| JSE-10-10-45 | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 28.2 | 36.6 | 12.3 | 12.3 | 7/8 |
| JSE-12-12-45 | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 32.5 | 38.1 | 15.5 | 15.5 | 1.1/16 |
| JSE-14-14-45 | 7/8" | 1.3/16"-12 | 7/8" | 1.3/16"-12 | 35.3 | 40.4 | 18.3 | 18.3 | 1.1/4 |
| JSE-16-16-45 | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 37.3 | 44.4 | 21.4 | 21.4 | 1.3/8 |
| JSE-20-20-45 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 40.4 | 49.8 | 27.4 | 27.4 | 1.3/4 |
| JSE-24-24-45 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 45.2 | 57.1 | 33.0 | 33.3 | 2 |
| JSE-32-32-45 | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 56.4 | 73.9 | 45.0 | 45.2 | 2.5/8 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
