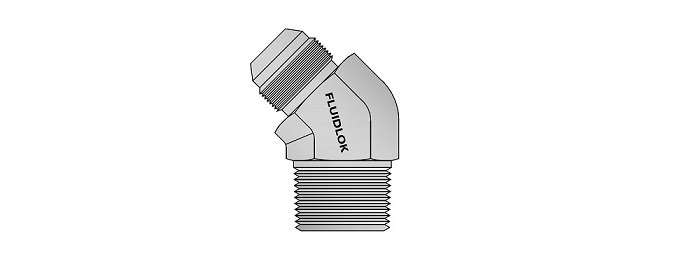

JIC Male Elbow 45° (Ref. 2503)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

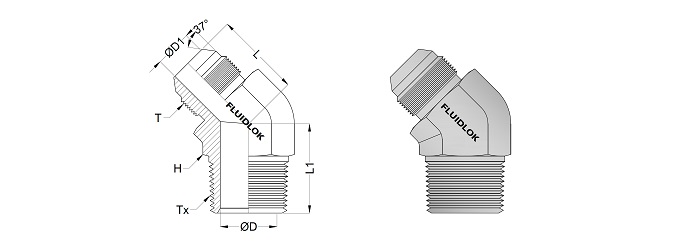

JIC Male Elbow 45°
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (NPT) |
L (mm) |
L1 (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JME-2-2N-45 | 1/8" | 5/16"-24 | 1/8" | 17.5 | 13.5 | 4.8 | 1.6 | 11/16 |
| JME-3-2N-45 | 3/16" | 3/8"-24 | 1/8" | 17.5 | 13.5 | 4.8 | 3.2 | 11/16 |
| JME-4-2N-45 | 1/4" | 7/16"-20 | 1/8" | 18.3 | 16.2 | 4.8 | 4.4 | 1/2 |
| JME-4-4N-45 | 1/4" | 7/16"-20 | 1/4" | 20.8 | 21.8 | 7.1 | 4.4 | 9/16 |
| JME-4-6N-45 | 1/4" | 7/16"-20 | 3/8" | 23.4 | 24.1 | 10.3 | 4.4 | 3/4 |
| JME-5-2N-45 | 5/16" | 1/2"-20 | 1/8" | 19.5 | 16.2 | 4.8 | 6.0 | 9/16 |
| JME-5-4N-45 | 5/16" | 1/2"-20 | 1/4" | 20.8 | 21.8 | 7.1 | 6.0 | 9/16 |
| JME-6-2N-45 | 3/8" | 9/16"-18 | 1/8" | 21.1 | 17.0 | 4.8 | 7.5 | 9/16 |
| JME-6-4N-45 | 3/8" | 9/16"-18 | 1/4" | 21.1 | 21.8 | 7.1 | 7.5 | 9/16 |
| JME-6-6N-45 | 3/8" | 9/16"-18 | 3/8" | 22.1 | 24.1 | 10.3 | 7.5 | 3/4 |
| JME-6-8N-45 | 3/8" | 9/16"-18 | 1/2" | 26.9 | 29.7 | 13.5 | 7.5 | 7/8 |
| JME-8-4N-45 | 1/2" | 3/4"-16 | 1/4" | 24.9 | 24.1 | 7.1 | 9.9 | 3/4 |
| JME-8-6N-45 | 1/2" | 3/4"-16 | 3/8" | 24.9 | 24.1 | 10.3 | 7.5 | 3/7 |
| JME-8-8N-45 | 1/2" | 3/4"-16 | 1/2" | 25.1 | 29.7 | 13.5 | 9.9 | 7/8 |
| JME-8-12N-45 | 1/2" | 3/4"-16 | 3/4" | 26.4 | 30.5 | 18.3 | 9.9 | 1.1/16 |
| JME-10-6N-45 | 5/8" | 7/8"-14 | 3/8" | 28.2 | 24.9 | 10.3 | 12.3 | 7/8 |
| JME-10-8N-45 | 5/8" | 7/8"-14 | 1/2" | 28.2 | 29.7 | 13.5 | 12.3 | 7/8 |
| JME-10-12N-45 | 5/8" | 7/8"-14 | 3/4" | 32.5 | 30.5 | 18.3 | 12.3 | 1.1/16 |
| JME-12-8N-45 | 3/4" | 1.1/16"-12 | 1/2" | 32.5 | 30.5 | 13.5 | 15.5 | 1.1/16 |
| JME-12-12N-45 | 3/4" | 1.1/16"-12 | 3/4" | 32.5 | 30.5 | 18.7 | 15.5 | 1.1/16 |
| JME-12-16N-45 | 3/4" | 1.1/16"-12 | 1" | 36.1 | 37.6 | 23.8 | 15.5 | 1.5/16 |
| JME-14-12N-45 | 7/8" | 1.3/16"-12 | 3/4" | 35.3 | 32.2 | 18.3 | 18.3 | 1.5/16 |
| JME-16-12N-45 | 1" | 1.5/16"-12 | 3/4" | 37.3 | 32.8 | 18.3 | 21.4 | 1.5/16 |
| JME-16-16N-45 | 1" | 1.5/16"-12 | 1" | 37.3 | 37.6 | 23.8 | 21.4 | 1.5/16 |
| JME-16-20N-45 | 1" | 1.5/16"-12 | 1.1/4" | 40.4 | 42.4 | 31.7 | 21.4 | 1.5/8 |
| JME-20-16N-45 | 1.1/4" | 1.5/8"-12 | 1" | 40.4 | 41.4 | 23.8 | 27.4 | 1.5/8 |
| JME-20-20N-45 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 40.4 | 42.4 | 31.7 | 27.4 | 1.5/8 |
| JME-24-24N-45 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 45.2 | 44.9 | 38.1 | 33.3 | 1.7/8 |
| JME-32-32N-45 | 2" | 2.1/2"-12 | 2" | 56.4 | 53.6 | 49.2 | 45.2 | 2.1/2 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JME-2-2N-_A).
