JIC Bulkhead Union Elbow (Ref. 2701)


  • Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
  • Size Range: 1/8” to 2” & 6mm to 50mm.
  • Materials: SS, CS, Brass, etc.
  • Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

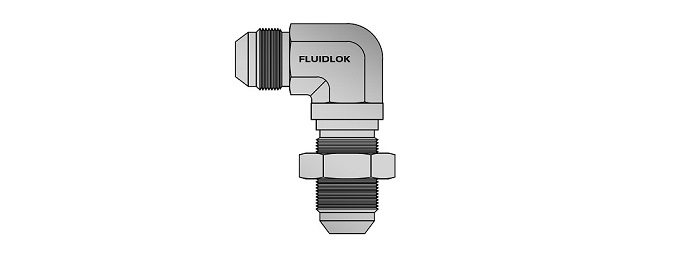

JIC Bulkhead Union Elbow
FLUIDLOK

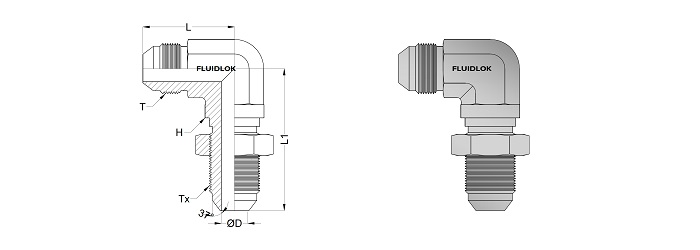

Part Number
T
(Tube OD)
T
(UNF/UN-2A)
L
(mm)
L1
(mm)
∅ D
(mm)
H
(Inch)
JBUE-2 1/8" 5/16"-24 38.1 22.4 1.6 11/16
JBUE-3 3/16" 3/8"-24 38.1 23.9 3.2 11/16
JBUE-4 1/4" 7/16"-20 40.4 24.6 4.4 1/2
JBUE-5 5/16" 1/2"-20 43.7 26.9 6.0 9/16
JBUE-6 3/8" 9/16"-18 46.0 27.7 7.5 9/16
JBUE-8 1/2" 3/4"-16 53.6 34.5 9.9 3/4
JBUE-10 5/8" 7/8"-14 60.7 39.6 12.3 7/8
JBUE-12 3/4" 1.1/16"-12 67.8 45.2 15.5 1.1/16
JBUE-14 7/8" 1.3/16"-12 71.1 48.8 18.3 1.5/16
JBUE-16 1" 1.5/16"-12 71.1 49.3 21.4 1.5/16
JBUE-20 1.1/4" 1.5/8"-12 79.2 55.1 27.4 1.5/8
JBUE-24 1.1/2" 1.7/8"-12 86.9 59.4 33.3 1.7/8
JBUE-32 2" 2.1/2"-12 104.4 73.4 45.2 2.1/2

• JIC 37º Flare Tube Fittings are available for metric tubing also.                                                                                            • Dimensions are for reference only. Subject to change.
• All bulkhead fittings are supplied with lock nut assembled on body.                                                                                      • All jump sizes are available.
• To order assembled with nut & sleeve select part number, material designator
  & suffix 'A' to ordering number (example: JBUE-2-_A).
