JIC Bulkhead Union Elbow 45° (Ref. 2702)


  • Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
  • Size Range: 1/8” to 2” & 6mm to 50mm.
  • Materials: SS, CS, Brass, etc.
  • Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

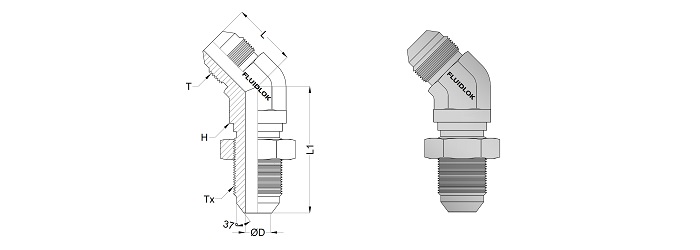

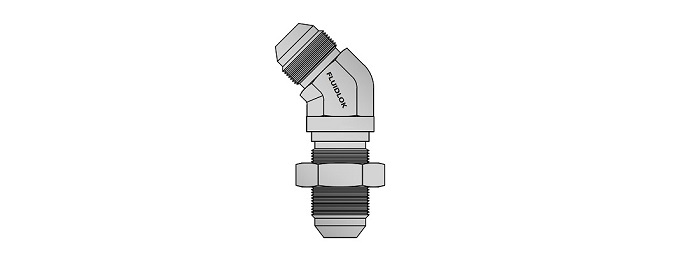

JIC Bulkhead Union Elbow 45°
FLUIDLOK
Part Number
T
(Tube OD)
T
(UNF/UN-2A)
L
(mm)
L1
(mm)
∅ D
(mm)
H
(Inch)
JBUE-2-45 1/8" 5/16"-24 17.5 36.1 1.6 11/16
JBUE-3-45 3/16" 3/8"-24 17.5 36.1 3.2 11/16
JBUE-4-45 1/4" 7/16"-20 18.3 38.9 4.4 1/2
JBUE-5-45 5/16" 1/2"-20 19.6 42.2 6.0 9/16
JBUE-6-45 3/8" 9/16"-18 21.1 42.4 7.5 9/16
JBUE-8-45 1/2" 3/4"-16 24.9 49.3 9.9 3/4
JBUE-10-45 5/8" 7/8"-14 28.2 55.1 12.3 7/8
JBUE-12-45 3/4" 1.1/16"-12 32.5 62.0 15.5 1.1/16
JBUE-14-45 7/8" 1.3/16"-12 36.8 63.5 18.3 1.5/16
JBUE-16-45 1" 1.5/16"-12 37.3 65.0 21.4 1.5/16
JBUE-20-45 1.1/4" 1.5/8"-12 40.4 67.3 27.4 1.5/8
JBUE-24-45 1.1/2" 1.7/8"-12 45.2 67.8 33.3 1.7/8
JBUE-32-45 2" 2.1/2"-12 56.4 73.9 45.2 2.1/2

• JIC 37º Flare Tube Fittings are available for metric tubing also.                                                                                            • Dimensions are for reference only. Subject to change.
• All bulkhead fittings are supplied with lock nut assembled on body.                                                                                      • All jump sizes are available.
• To order assembled with nut & sleeve select part number, material designator
  & suffix 'A' to ordering number (example: JBUE-2-_A).
