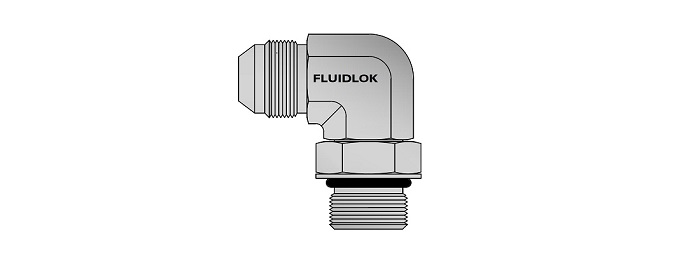

JIC Adjustable Male Elbow - UF (Ref. 6801)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

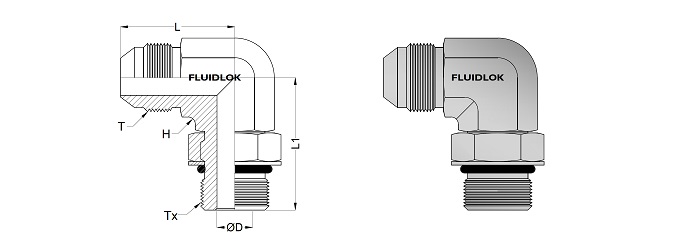

JIC Adjustable Male Elbow - UF
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
L1 (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JAME-2-2UF | 1/8" | 5/16"-24 | 1/8" | 5/16"-24 | 19.6 | 23.9 | 1.6 | 11/16 |
| JAME-3-3UF | 3/16" | 3/8"-24 | 3/16" | 3/8"-24 | 21.1 | 23.9 | 3.2 | 11/16 |
| JAME-4-2UF | 1/4" | 7/16"-20 | 1/8" | 5/16"-24 | 22.6 | 23.9 | 4.4 | 11/16 |
| JAME-4-4UF | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 22.6 | 26.2 | 4.4 | 11/16 |
| JAME-4-5UF | 1/4" | 7/16"-20 | 5/16" | 1/2"-20 | 24.1 | 28.7 | 4.4 | 9/16 |
| JAME-4-6UF | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 26.7 | 31.7 | 4.4 | 9/16 |
| JAME-4-8UF | 1/4" | 7/16"-20 | 1/2" | 3/4"-16 | 28.4 | 36.8 | 4.4 | 3/4 |
| JAME-5-4UF | 5/16" | 1/2"-20 | 1/4" | 7/16"-20 | 24.1 | 28.7 | 6.0 | 9/16 |
| JAME-5-5UF | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 24.1 | 28.7 | 6.0 | 9/16 |
| JAME-5-6UF | 5/16" | 1/2"-20 | 3/8" | 9/16"-18 | 26.7 | 31.7 | 6.0 | 9/16 |
| JAME-6-4UF | 3/8" | 9/16"-18 | 1/4" | 7/16"-20 | 26.9 | 30.2 | 7.5 | 9/16 |
| JAME-6-5UF | 3/8" | 9/16"-18 | 5/16" | 1/2"-20 | 26.9 | 30.2 | 7.5 | 9/16 |
| JAME-6-6UF | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 26.9 | 31.7 | 7.5 | 9/16 |
| JAME-6-8UF | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 28.6 | 36.8 | 7.5 | 3/4 |
| JAME-6-10UF | 3/8" | 9/16"-18 | 5/8" | 7/8"-14 | 31.2 | 43.2 | 7.5 | 7/8 |
| JAME-6-12UF | 3/8" | 9/16"-18 | 3/4" | 1.1/16"-12 | 33.3 | 49.3 | 7.5 | 1.1/16 |
| JAME-8-4UF | 1/2" | 3/4"-16 | 1/4" | 7/16"-20 | 31.7 | 32.0 | 9.9 | 3/4 |
| JAME-8-6UF | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 31.7 | 33.5 | 9.9 | 3/4 |
| JAME-8-8UF | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 31.7 | 36.8 | 9.9 | 3/4 |
| JAME-8-10UF | 1/2" | 3/4"-16 | 5/8" | 7/8"-14 | 34.0 | 43.2 | 9.9 | 7/8 |
| JAME-8-12UF | 1/2" | 3/4"-16 | 3/4" | 1.1/16"-12 | 36.1 | 49.3 | 9.9 | 1.1/16 |
| JAME-8-16UF | 1/2" | 3/4"-16 | 1" | 1.5/16"-12 | 38.6 | 52.1 | 9.9 | 1.5/16 |
| JAME-10-6UF | 5/8" | 7/8"-14 | 3/8" | 9/16"-18 | 36.8 | 35.8 | 12.3 | 7/8 |
| JAME-10-8UF | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 36.8 | 39.1 | 12.3 | 7/8 |
| JAME-10-10UF | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 36.8 | 43.2 | 12.3 | 7/8 |
| JAME-10-12UF | 5/8" | 7/8"-14 | 3/4" | 1.1/6"-12 | 39.1 | 49.3 | 12.3 | 1.1/16 |
| JAME-10-16UF | 5/8" | 7/8"-14 | 1" | 1.5/16-12 | 41.6 | 52.1 | 12.3 | 1.5/16 |
| JAME-12-6UF | 3/4" | 1.1/16"-12 | 3/8" | 9/16"-18 | 42.2 | 37.8 | 15.5 | 1.1/16 |
| JAME-12-8UF | 3/4" | 1.1/16"-12 | 1/2" | 3/4"-16 | 42.2 | 41.1 | 15.5 | 1.1/16 |
| JAME-12-10UF | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 42.2 | 45.2 | 15.5 | 1.1/16 |
| JAME-12-12UF | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 42.2 | 49.3 | 15.5 | 1.1/16 |
| JAME-12-14UF | 3/4" | 1.1/16"-12 | 7/8" | 1.3/16"-12 | 44.9 | 50.8 | 15.5 | 1.1/4 |
| JAME-12-16UF | 3/4" | 1.1/16"-12 | 1" | 1.5/16"-12 | 44.7 | 52.1 | 15.5 | 1.5/16 |
| JAME-12-20UF | 3/4" | 1.1/16"-12 | 1.1/4" | 1.5/8"-12 | 50.0 | 57.1 | 15.5 | 1.5/8 |
| JAME-14-14UF | 7/8" | 1.3/16"-12 | 7/8" | 1.3/16"-12 | 45.7 | 50.8 | 18.3 | 1.5/16 |
| JAME-16-8UF | 1" | 1.5/16"-12 | 1/2" | 3/4"-16 | 46.0 | 44.7 | 21.4 | 1.5/16 |
| JAME-16-10UF | 1" | 1.5/16"-12 | 5/8" | 7/8"-14 | 46.0 | 48.0 | 21.4 | 1.5/16 |
| JAME-16-12UF | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 46.0 | 52.1 | 21.4 | 1.5/16 |
| JAME-16-14UF | 1" | 1.5/16"-12 | 7/8" | 1.3/16"-12 | 46.0 | 52.1 | 21.4 | 1.5/16 |
| JAME-16-16UF | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 46.0 | 52.1 | 21.4 | 1.5/16 |
| JAME-16-20UF | 1" | 1.5/16"-12 | 1.1/4" | 1.5/8"-12 | 51.0 | 57.1 | 21.4 | 1.5/8 |
| JAME-20-12UF | 1.1/4" | 1.5/8"-12 | 3/4" | 1.1/16"-12 | 52.3 | 57.1 | 27.4 | 1.5/8 |
| JAME-20-16UF | 1.1/4" | 1.5/8"-12 | 1" | 1.5/16"-12 | 52.3 | 57.1 | 27.4 | 1.5/8 |
| JAME-20-20UF | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 52.3 | 57.1 | 27.4 | 1.5/8 |
| JAME-20-24UF | 1.1/4" | 1.5/8"-12 | 1.1/2" | 1.7/8"-12 | 55.9 | 58.7 | 27.4 | 1.7/8 |
| JAME-24-20UF | 1.1/2" | 1.7/8"-12 | 1.1/4" | 1.5/8"-12 | 59.2 | 59.7 | 33.3 | 1.7/8 |
| JAME-24-24UF | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 59.2 | 60.7 | 33.3 | 1.7/8 |
| JAME-32-32UF | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 77.7 | 73.4 | 45.2 | 2.1/2 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JAME-2-2UF-_A).
