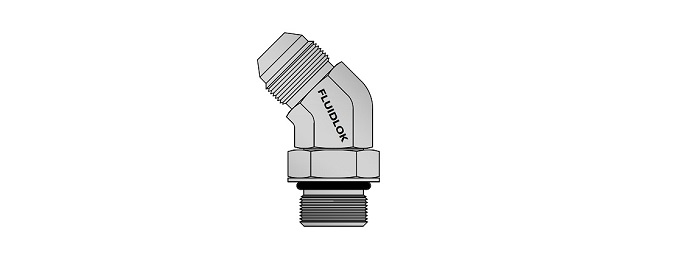

JIC Adjustable Male Elbow 45°-UF (Ref. 6802)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

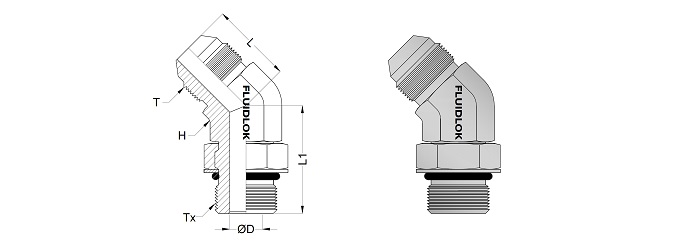

JIC Adjustable Male Elbow 45° - UF
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx |
Tx (UNF/UN-2A) |
L (mm) |
L1 (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|---|
| JAME-4-4UF-45 | 1/4" | 7/16"-20 | 1/4" | 7/16"-20 | 18.3 | 26.7 | 4.4 | 11/16 |
| JAME-4-5UF-45 | 1/4" | 7/16"-20 | 5/16" | 1/2"-20 | 19.5 | 26.7 | 4.4 | 9/16 |
| JAME-4-6UF-45 | 1/4" | 7/16"-20 | 3/8" | 9/16"-18 | 20.8 | 28.9 | 4.4 | 9/16 |
| JAME-4-8UF-45 | 1/4" | 7/16"-20 | 1/2" | 3/4"-16 | 21.6 | 33.0 | 4.4 | 3/4 |
| JAME-5-4UF-45 | 5/16" | 1/2"-20 | 1/4" | 7/16"-20 | 19.5 | 26.7 | 6.0 | 9/16 |
| JAME-5-5UF-45 | 5/16" | 1/2"-20 | 5/16" | 1/2"-20 | 19.5 | 26.7 | 6.0 | 9/16 |
| JAME-5-6UF-45 | 5/16" | 1/2"-20 | 3/8" | 9/16"-18 | 20.8 | 28.9 | 6.0 | 9/16 |
| JAME-6-4UF-45 | 3/8" | 9/16"-18 | 1/4" | 7/16"-20 | 21.1 | 27.4 | 7.5 | 9/16 |
| JAME-6-5UF-45 | 3/8" | 9/16"-18 | 5/16" | 1/2"-20 | 21.1 | 28.5 | 7.5 | 9/16 |
| JAME-6-6UF-45 | 3/8" | 9/16"-18 | 3/8" | 9/16"-18 | 21.1 | 28.5 | 7.5 | 9/16 |
| JAME-6-8UF-45 | 3/8" | 9/16"-18 | 1/2" | 3/4"-16 | 21.8 | 33.0 | 7.5 | 3/4 |
| JAME-6-10UF-45 | 3/8" | 9/16"-18 | 5/8" | 7/8"-14 | 22.3 | 38.6 | 7.5 | 7/8 |
| JAME-8-6UF-45 | 1/2" | 3/4"-16 | 3/8" | 9/16"-18 | 24.9 | 29.7 | 9.9 | 3/4 |
| JAME-8-8UF-45 | 1/2" | 3/4"-16 | 1/2" | 3/4"-16 | 24.9 | 33.0 | 9.9 | 3/4 |
| JAME-8-10UF-45 | 1/2" | 3/4"-16 | 5/8" | 7/8"-14 | 25.4 | 38.6 | 9.9 | 7/8 |
| JAME-8-12UF-45 | 1/2" | 3/4"-16 | 3/4" | 1.1/16"-12 | 26.4 | 43.9 | 9.9 | 1.1/16 |
| JAME-10-8UF-45 | 5/8" | 7/8"-14 | 1/2" | 3/4"-16 | 28.2 | 34.9 | 12.3 | 7/8 |
| JAME-10-10UF-45 | 5/8" | 7/8"-14 | 5/8" | 7/8"-14 | 28.2 | 38.6 | 12.3 | 7/8 |
| JAME-10-12UF-45 | 5/8" | 7/8"-14 | 3/4" | 1.1/16"-12 | 29.5 | 43.9 | 12.3 | 1.1/16 |
| JAME-12-10UF-45 | 3/4" | 1.1/16"-12 | 5/8" | 7/8"-14 | 32.5 | 40.1 | 15.5 | 1.1/16 |
| JAME-12-12UF-45 | 3/4" | 1.1/16"-12 | 3/4" | 1.1/16"-12 | 32.5 | 43.9 | 15.5 | 1.1/16 |
| JAME-12-16UF-45 | 3/4" | 1.1/16"-12 | 1" | 1.5/16"-12 | 36.1 | 47.2 | 15.5 | 1.5/16 |
| JAME-14-14UF-45 | 7/8" | 1.3/16"-12 | 7/8" | 1.3/16"-12 | 36.8 | 47.2 | 18.3 | 1.5/16 |
| JAME-16-12UF-45 | 1" | 1.5/16"-12 | 3/4" | 1.1/16"-12 | 37.3 | 47.2 | 21.4 | 1.5/16 |
| JAME-16-16UF-45 | 1" | 1.5/16"-12 | 1" | 1.5/16"-12 | 37.3 | 47.2 | 21.4 | 1.5/16 |
| JAME-16-20UF-45 | 1" | 1.5/16"-12 | 1.1/4" | 1.5/8"-12 | 39.1 | 48.5 | 21.4 | 1.5/8 |
| JAME-20-16UF-45 | 1.1/4" | 1.5/8"-12 | 1" | 1.5/16"-12 | 40.4 | 48.5 | 27.4 | 1.5/8 |
| JAME-20-20UF-45 | 1.1/4" | 1.5/8"-12 | 1.1/4" | 1.5/8"-12 | 40.4 | 48.5 | 27.4 | 1.5/8 |
| JAME-24-24UF-45 | 1.1/2" | 1.7/8"-12 | 1.1/2" | 1.7/8"-12 | 45.2 | 48.5 | 33.3 | 1.7/8 |
| JAME-32-32UF-45 | 2" | 2.1/2"-12 | 2" | 2.1/2"-12 | 56.4 | 47.2 | 45.2 | 2.1/2 |
• JIC 37º Flare Tube Fittings are available for metric tubing also. • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator • All jump sizes are available.
& suffix 'A' to ordering number (example: JAME-4-4UF-_A).
