JIC Tube Plug (Ref. 2408)


  • Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
  • Size Range: 1/8” to 2” & 6mm to 50mm.
  • Materials: SS, CS, Brass, etc.
  • Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

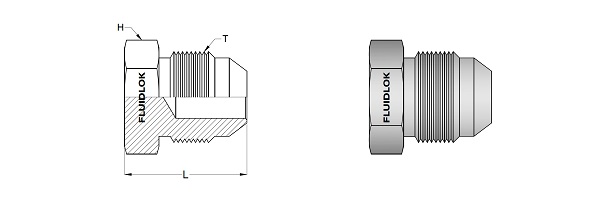

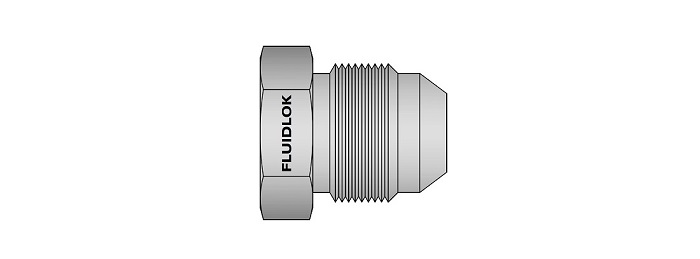

JIC Tube Plug
FLUIDLOK
Part Number
T
(Tube OD)
T
(UNF/UN-2A)
L
(mm)
H
(Inch)
JP-2 1/8" 5/16"-24 17.8 7/16
JP-3 3/16" 3/8"-24 18.5 7/16
JP-4 1/4" 7/16"-20 20.3 1/2
JP-5 5/16" 1/2"-20 20.3 9/16
JP-6 3/8" 9/16"-18 21.3 5/8
JP-8 1/2" 3/4"-16 23.9 13/16
JP-10 5/8" 7/8"-14 27.9 15/16
JP-12 3/4" 1.1/16"-12 32.5 1.1/8
JP-14 7/8" 1.3/16"-12 33.3 1.1/4
JP-16 1" 1.5/16"-12 33.8 1.3/8
JP-20 1.1/4" 1.5/8"-12 36.8 1.11/16
JP-24 1.1/2" 1.7/8"-12 41.9 2
JP-32 2" 2.1/2"-12 52.1 2.5/8

• JIC 37º Flare Tube Fittings are available for metric tubing also.                                                                                            • Dimensions are for reference only. Subject to change.
• To order assembled with nut & sleeve select part number, material designator                                                                    • All jump sizes are available.
  & suffix 'A' to ordering number (example: JP-2-_A).
