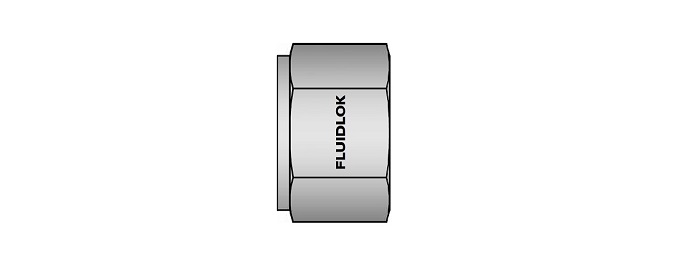

JIC Tube Cap (Ref. 0304-C)
- Features: JIC Tube Fittings are reliable leak-free connection for most high pressure hydraulic applications.
- Size Range: 1/8” to 2” & 6mm to 50mm.
- Materials: SS, CS, Brass, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.

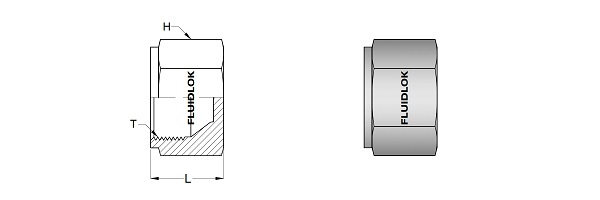

JIC Tube Cap
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2B) |
L (mm) |
H (Inch) |
|---|---|---|---|---|
| JC-2 | 1/8" | 5/16"-24 | 12.7 | 3/8 |
| JC-3 | 3/16" | 3/8"-24 | 14.3 | 7/16 |
| JC-4 | 1/4" | 7/16"-20 | 15.1 | 9/16 |
| JC-5 | 5/16" | 1/2"-20 | 15.5 | 5/8 |
| JC-6 | 3/8" | 9/16"-18 | 15.9 | 11/16 |
| JC-8 | 1/2" | 3/4"-16 | 19.0 | 7/8 |
| JC-10 | 5/8" | 7/8"-14 | 21.4 | 1 |
| JC-12 | 3/4" | 1.1/16"-12 | 23.0 | 1.1/4 |
| JC-14 | 7/8" | 1.3/16"-12 | 24.6 | 1.3/8 |
| JC-16 | 1" | 1.5/16"-12 | 25.8 | 1.1/2 |
| JC-20 | 1.1/4" | 1.5/8"-12 | 27.0 | 2 |
| JC-24 | 1.1/2" | 1.7/8"-12 | 30.2 | 2.1/4 |
| JC-32 | 2" | 2.1/2"-12 | 36.5 | 2.7/8 |
• Dimensions are for reference only. Subject to change.
• All jump sizes are available.
