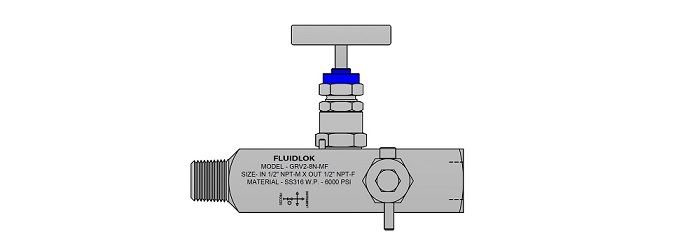

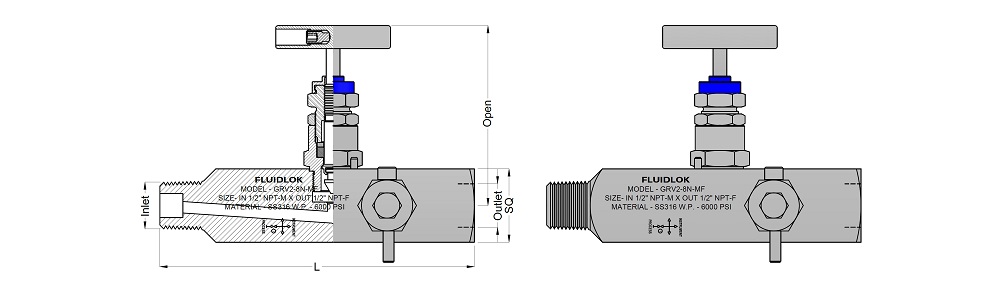

Gauge Root Valve - 2 (GRV2)

Application:

• A safe & economical method of installing pressure switches, gauges and differential transmitters block and bleed for purge valve, sampling lie and safe pressure source.

Features:

• Outside screwed bonnet design.
• Back seating of stem in fully open position prevents stem back-out.
• All types of valves have a self-centering, non-rotating needle on the valve seat, alternative seating to choose for every application requiring bubble tight shut-off.
• Safety stop pin (SS316 pin prevents detachment of the bonnet from the body due to vibrations).
• Bonnet-to-body seat, metal to metal seal eliminates the need of 'O'-Ring seals.
• Dust cap with colour identification.

Specifications:

• Standard pressure rating up to 6000 psi (413 bars).
• Standard PTFE packing and optional Graphoil packing for higher temperature services.
• Temperature rating for PTFE 450ºF (232ºC) & for Graphoil 1000ºF (538ºF).

Testing:

• Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
• Pneumatic test: Seat - 1000 psi (69 bars)
• Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.
