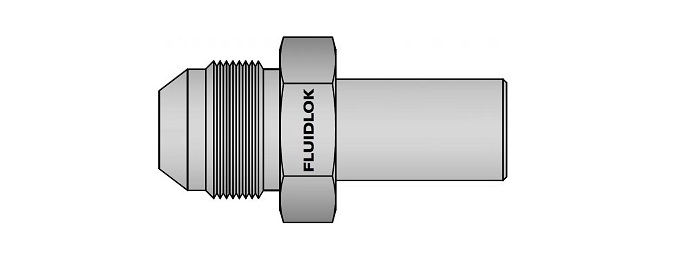

JIC Tube Adaptor (Ref. 9200)
JIC Tube Adaptor
|

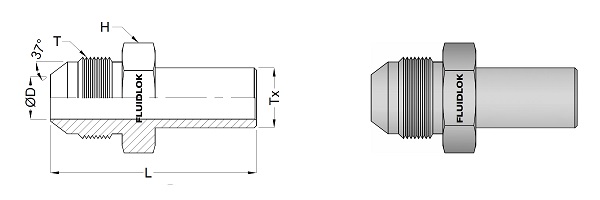

FLUIDLOK Part Number |
T (Tube OD) |
T (UN/UNF-2A) |
Tx (Tube Stub) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 4-JTA-6LL,L,S | 1/4" | 7/16"-20 | 6 mm | 40.1 | 3.5 | 9/16 |
| 4-JTA-8LL,L,S | 1/4" | 7/16"-20 | 8 mm | 42.7 | 4.4 | 9/16 |
| 4-JTA-10LL,L,S | 1/4" | 7/16"-20 | 10 mm | 39.4 | 4.4 | 7/16 |
| 6-JTA-10LL,L,S | 3/8" | 9/16"-18 | 10 mm | 42.4 | 6.5 | 3/4 |
| 8-JTA-12LL,L,S | 1/2" | 3/4"-16 | 12 mm | 50.0 | 7.5 | 7/8 |
| 8-JTA-14S | 1/2" | 3/4"-16 | 14 mm | 48.0 | 9.5 | 7/8 |
| 10-JTA-15L | 5/8" | 7/8"-14 | 15 mm | 51.6 | 11.0 | 1 |
| 10-JTA-16S | 5/8" | 7/8"-14 | 16 mm | 52.6 | 11.5 | 1 |
| 12-JTA-16S | 3/4" | 1.1/16"-12 | 16 mm | 56.4 | 11.5 | 1.1/4 |
| 12-JTA-18L | 3/4" | 1.1/16"-12 | 18 mm | 53.8 | 14.0 | 1.1/4 |
| 12-JTA-20S | 3/4" | 1.1/16"-12 | 20 mm | 60.4 | 15.5 | 1.1/4 |
| 16-JTA-22L | 1" | 1.5/16"-12 | 22 mm | 56.1 | 18.0 | 1.1/2 |
| 16-JTA-25S | 1" | 1.5/16"-12 | 25 mm | 64.5 | 18.0 | 1.1/2 |
| 16-JTA-30S | 1" | 1.5/16"-12 | 30 mm | 69.8 | 21.4 | 1.1/2 |
| 20-JTA-30S | 1" | 1.5/16"-12 | 38 mm | 75.9 | 23.0 | 1.1/2 |
| 16-JTA-38S | 1.1/4" | 1.5/8"-12 | 30 mm | 73.1 | 21.4 | 1.3/4 |
| 20-JTA-38S | 1.1/4" | 1.5/8"-12 | 38 mm | 79.0 | 27.4 | 1.3/4 |
• Dimensions are for reference only. Subject to change.
