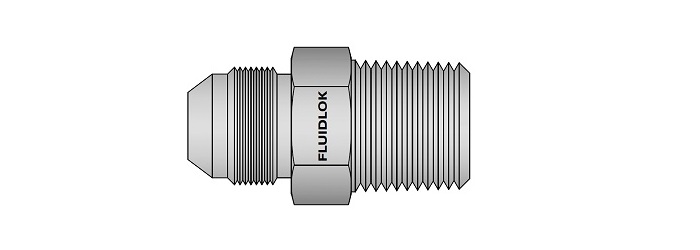

JIC Male Connector - BSPT (Ref. 7000)

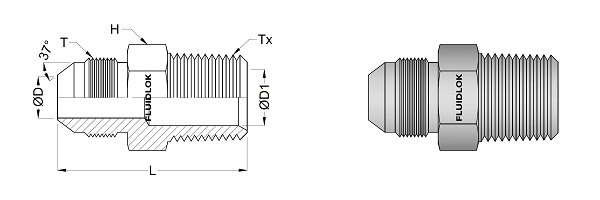

JIC Male Connector - BSPT
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UNF/UN-2A) |
Tx (BSPT) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| JMC-2-2RT | 1/8" | 5/16"-24 | 1/8" | 28.2 | 1.6 | 4.78 | 7/16 |
| JMC-3-2RT | 3/16" | 3/8"-24 | 1/8" | 29.0 | 3.2 | 4.78 | 7/16 |
| JMC-4-2RT | 1/4" | 7/16"-20 | 1/8" | 31.0 | 4.4 | 4.78 | 1/2 |
| JMC-4-4RT | 1/4" | 7/16"-20 | 1/4" | 36.1 | 4.4 | 7.14 | 9/16 |
| JMC-4-6RT | 1/4" | 7/16"-20 | 3/8" | 36.1 | 4.4 | 10.31 | 3/4 |
| JMC-4-8RT | 1/4" | 7/16"-20 | 1/2" | 42.7 | 4.4 | 13.49 | 7/8 |
| JMC-4-12RT | 1/4" | 7/16"-20 | 3/4" | 44.4 | 4.4 | 18.26 | 1.1/8 |
| JMC-5-2RT | 5/16" | 1/2"-20 | 1/8" | 31.0 | 6.0 | 4.78 | 9/16 |
| JMC-5-4RT | 5/16" | 1/2"-20 | 1/4" | 36.1 | 6.0 | 7.14 | 9/16 |
| JMC-5-6RT | 5/16" | 1/2"-20 | 3/8" | 36.1 | 6.0 | 10.31 | 3/4 |
| JMC-6-2RT | 3/8" | 9/16"-18 | 1/8" | 31.5 | 7.5 | 4.78 | 5/8 |
| JMC-6-4RT | 3/8" | 9/16"-18 | 1/4" | 36.3 | 7.5 | 7.14 | 5/8 |
| JMC-6-6RT | 3/8" | 9/16"-18 | 3/8" | 36.3 | 7.5 | 10.31 | 3/4 |
| JMC-6-8RT | 3/8" | 9/16"-18 | 1/2" | 42.9 | 7.5 | 13.49 | 7/8 |
| JMC-6-12RT | 3/8" | 9/16"-18 | 3/4" | 44.4 | 7.5 | 18.26 | 1.1/8 |
| JMC-8-2RT | 1/2" | 3/4"-16 | 1/8" | 34.0 | 9.9 | 4.78 | 13/16 |
| JMC-8-4RT | 1/2" | 3/4"-16 | 1/4" | 38.9 | 9.9 | 7.14 | 13/16 |
| JMC-8-6RT | 1/2" | 3/4"-16 | 3/8" | 38.9 | 9.9 | 10.31 | 13/16 |
| JMC-8-8RT | 1/2" | 3/4"-16 | 1/2" | 45.5 | 9.9 | 13.49 | 7/8 |
| JMC-8-12RT | 1/2" | 3/4"-16 | 3/4" | 47.0 | 9.9 | 18.26 | 1.1/8 |
| JMC-8-16RT | 1/2" | 3/4"-16 | 1" | 52.1 | 9.9 | 23.83 | 1.3/8 |
| JMC-10-4RT | 5/8" | 7/8"-14 | 1/4" | 42.9 | 12.3 | 7.14 | 15/16 |
| JMC-10-6RT | 5/8" | 7/8"-14 | 3/8" | 43.2 | 12.3 | 10.31 | 15/16 |
| JMC-10-8RT | 5/8" | 7/8"-14 | 1/2" | 48.0 | 12.3 | 13.49 | 15/16 |
| JMC-10-12RT | 5/8" | 7/8"-14 | 3/4" | 49.5 | 12.3 | 18.26 | 1.1/8 |
| JMC-10-24RT | 5/8" | 7/8"-14 | 1.1/2" | 59.7 | 12.3 | 38.10 | 2 |
| JMC-12-6RT | 3/4" | 1.1/16"-12 | 3/8" | 47.5 | 15.5 | 10.31 | 1.1/8 |
| JMC-12-8RT | 3/4" | 1.1/16"-12 | 1/2" | 52.3 | 15.5 | 13.49 | 1.1/8 |
| JMC-12-12RT | 3/4" | 1.1/16"-12 | 3/4" | 52.3 | 15.5 | 18.26 | 1.1/8 |
| JMC-12-16RT | 3/4" | 1.1/16"-12 | 1" | 57.1 | 15.5 | 23.83 | 1.3/8 |
| JMC-12-20N | 3/4" | 1.1/16"-12 | 1.1/4" | 59.9 | 15.5 | 31.75 | 1.11/16 |
| JMC-12-24RT | 3/4" | 1.1/16"-12 | 1.1/2" | 62.5 | 15.5 | 38.10 | 2 |
| JMC-14-8RT | 7/8" | 1.3/16"-12 | 1/2" | 53.1 | 18.3 | 13.49 | 1.1/4 |
| JMC-14-12RT | 7/8" | 1.3/16"-12 | 3/4" | 53.1 | 18.3 | 18.30 | 1.1/4 |
| JMC-16-8RT | 1" | 1.5/16"-12 | 1/2" | 52.6 | 21.4 | 13.49 | 1.3/8 |
| JMC-16-12RT | 1" | 1.5/16"-12 | 3/4" | 53.6 | 21.4 | 18.30 | 1.3/8 |
| JMC-16-16RT | 1" | 1.5/16"-12 | 1" | 58.4 | 21.4 | 23.83 | 1.3/8 |
| JMC-16-20N | 1" | 1.5/16"-12 | 1.1/4" | 61.0 | 21.4 | 31.75 | 1.11/16 |
| JMC-16-24RT | 1" | 1.5/16"-12 | 1.1/2" | 63.7 | 21.4 | 38.10 | 2 |
| JMC-20-12RT | 1.1/4" | 1.5/8"-12 | 3/4" | 56.6 | 27.4 | 18.30 | 1.11/16 |
| JMC-20-16RT | 1.1/4" | 1.5/8"-12 | 1" | 61.5 | 27.4 | 23.83 | 1.11/16 |
| JMC-20-20N | 1.1/4" | 1.5/8"-12 | 1.1/4" | 62.2 | 27.4 | 31.75 | 1.11/16 |
| JMC-20-24RT | 1.1/4" | 1.5/8"-12 | 1.1/2" | 64.8 | 27.4 | 38.10 | 2 |
| JMC-24-16RT | 1.1/2" | 1.7/8"-12 | 1" | 66.5 | 33.3 | 23.83 | 2 |
| JMC-24-20N | 1.1/2" | 1.7/8"-12 | 1.1/4" | 67.3 | 33.3 | 31.75 | 2 |
| JMC-24-24RT | 1.1/2" | 1.7/8"-12 | 1.1/2" | 68.1 | 33.3 | 38.10 | 2 |
| JMC-24-32RT | 1.1/2" | 1.7/8"-12 | 2" | 72.6 | 33.3 | 49.23 | 2.1/2 |
| JMC-32-16RT | 2" | 2.1/2"-12 | 1" | 76.7 | 45.2 | 23.83 | 2.5/8 |
| JMC-32-20N | 2" | 2.1/2"-12 | 1.1/4" | 77.5 | 45.2 | 31.75 | 2.5/8 |
| JMC-32-24RT | 2" | 2.1/2"-12 | 1.1/2" | 78.2 | 45.2 | 38.10 | 2.5/8 |
| JMC-32-32RT | 2" | 2.1/2"-12 | 2" | 79.0 | 45.2 | 49.23 | 2.5/8 |
• Dimensions are for reference only. Subject to change.
