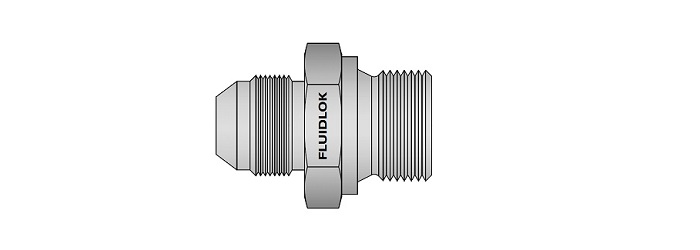

JIC Male Connector - BSPP (Ref. 7002)

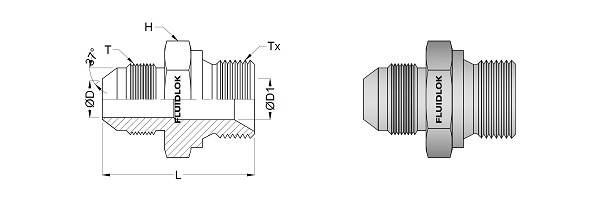

JIC Male Connector BSPP - Form A
|
FLUIDLOK Part Number |
T (Tube OD) |
T (UN/UNF-2A) |
Tx (BSPP) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|
| JMC-4-2GA | 1/4" | 7/16-20 | 1/8" | 27.0 | 4.0 | 4.0 | 14 |
| JMC-4-4GA | 1/4" | 7/16-20 | 1/4" | 32.0 | 4.0 | 5.5 | 19 |
| JMC-4-6GA | 1/4" | 7/16-20 | 3/8" | 34.0 | 4.0 | 8.0 | 22 |
| JMC-4-8GA | 1/4" | 7/16-20 | 1/2" | 38.0 | 4.0 | 11.0 | 27 |
| JMC-5-2GA | 5/16" | 1/2"-20 | 1/8" | 28.8 | 6.0 | 4.0 | 14 |
| JMC-5-2GA | 5/16" | 1/2"-20 | 1/4" | 32.0 | 5.5 | 5.5 | 19 |
| JMC-5-8GA | 5/16" | 1/2"-20 | 3/8" | 34.0 | 6.0 | 8.0 | 22 |
| JMC-5-8GA | 5/16" | 1/2"-20 | 1/2" | 38.0 | 6.0 | 11.0 | 27 |
| JMC-5-12GA | 5/16" | 1/2"-20 | 3/4" | 42.0 | 6.0 | 17.0 | 32 |
| JMC-6-2GA | 3/8" | 9/16"-18 | 1/8" | 29.7 | 7.5 | 4.0 | 16 |
| JMC-6-4GA | 3/8" | 9/16"-18 | 1/4" | 32.1 | 7.5 | 5.5 | 19 |
| JMC-6-6GA | 3/8" | 9/16"-18 | 3/8" | 34.1 | 7.5 | 8.0 | 22 |
| JMC-6-8GA | 3/8" | 9/16"-18 | 1/2" | 38.1 | 7.5 | 11.0 | 27 |
| JMC-6-10GA | 3/8" | 9/16"-18 | 5/8" | 42.1 | 7.5 | 14.3 | 30 |
| JMC-6-12GA | 3/8" | 9/16"-18 | 3/4" | 42.1 | 7.5 | 17.0 | 32 |
| JMC-8-4GA | 1/2" | 3/4"-16 | 1/4" | 35.4 | 9.9 | 5.5 | 19 |
| JMC-8-6GA | 1/2" | 3/4"-16 | 3/8" | 36.7 | 9.9 | 8.0 | 22 |
| JMC-8-8GA | 1/2" | 3/4"-16 | 1/2" | 40.7 | 9.9 | 11.0 | 27 |
| JMC-8-10GA | 1/2" | 3/4"-16 | 5/8" | 44.7 | 9.9 | 14.3 | 30 |
| JMC-8-12GA | 1/2" | 3/4"-16 | 3/4" | 44.7 | 9.9 | 17.0 | 32 |
| JMC-8-16GA | 1/2" | 3/4"-16 | 1" | 50.7 | 9.9 | 22.0 | 41 |
| JMC-10-4GA | 5/8" | 7/8"-14 | 1/4" | 39.5 | 12.3 | 5.5 | 24 |
| JMC-10-6GA | 5/8" | 7/8"-14 | 3/8" | 40.5 | 12.3 | 8.0 | 24 |
| JMC-10-8GA | 5/8" | 7/8"-14 | 1/2" | 43.3 | 12.3 | 11.0 | 27 |
| JMC-10-10GA | 5/8" | 7/8"-14 | 5/8" | 47.3 | 12.3 | 14.3 | 30 |
| JMC-10-12GA | 5/8" | 7/8"-14 | 3/4" | 47.3 | 12.3 | 17.0 | 32 |
| JMC-10-16GA | 5/8" | 7/8"-14 | 1" | 53.3 | 12.3 | 22.0 | 41 |
| JMC-12-6GA | 3/4" | 1.1/16"-12 | 3/8" | 45.0 | 15.5 | 8.0 | 27 |
| JMC-12-12GA | 3/4" | 1.1/16"-12 | 1/2" | 47.0 | 15.5 | 11.0 | 32 |
| JMC-12-10GA | 3/4" | 1.1/16"-12 | 5/8" | 49.9 | 15.5 | 14.3 | 30 |
| JMC-12-12GA | 3/4" | 1.1/16"-12 | 3/4" | 49.9 | 15.5 | 17.0 | 32 |
| JMC-12-16GA | 3/4" | 1.1/16"-12 | 1" | 55.9 | 15.5 | 22.0 | 41 |
| JMC-12-20GA | 3/4" | 1.1/16"-12 | 1.1/4" | 60.9 | 15.5 | 29.0 | 50 |
| JMC-14-12GA | 7/8" | 1.3/16"-12 | 3/4" | 49.5 | 17.0 | 17.0 | 32 |
| JMC-14-16GA | 7/8" | 1.3/16"-12 | 1" | 56.6 | 18.3 | 22.0 | 41 |
| JMC-16-8GA | 1" | 1.5/16"-12 | 1/2" | 48.1 | 21.4 | 11.0 | 36 |
| JMC-16-12GA | 1" | 1.5/16"-12 | 3/4" | 50.1 | 21.4 | 17.0 | 36 |
| JMC-16-16GA | 1" | 1.5/16"-12 | 1" | 57.1 | 21.4 | 21.4 | 41 |
| JMC-16-20GA | 1" | 1.5/16"-12 | 1.1/4" | 62.1 | 21.4 | 29.0 | 50 |
| JMC-16-24GA | 1" | 1.5/16"-12 | 1.1/2" | 68.1 | 21.4 | 33.0 | 55 |
| JMC-20-12GA | 1.1/4" | 1.5/8"-12 | 3/4" | 53.4 | 27.4 | 17.0 | 46 |
| JMC-20-16GA | 1.1/4" | 1.5/8"-12 | 1" | 56.4 | 27.4 | 22.0 | 46 |
| JMC-20-20GA | 1.1/4" | 1.5/8"-12 | 1.1/4" | 63.3 | 27.4 | 29.0 | 50 |
| JMC-20-24GA | 1.1/4" | 1.5/8"-12 | 1.1/2" | 69.3 | 27.4 | 33.0 | 55 |
| JMC-20-16GA | 1.1/4" | 1.5/8"-12 | 1" | 61.3 | 33.3 | 22.0 | 50 |
| JMC-24-20GA | 1.1/2" | 1.7/8"-12 | 1.1/4" | 62.3 | 33.3 | 29.0 | 50 |
| JMC-24-24GA | 1.1/2" | 1.7/8"-12 | 1.1/2" | 72.5 | 33.0 | 33.0 | 55 |
| JMC-24-32GA | 1.1/2" | 1.7/8"-12 | 2" | 81.5 | 33.3 | 46.0 | 70 |
| JMC-32-16GA | 2" | 2.1/2"-12 | 1" | 71.5 | 45.2 | 22.0 | 68 |
| JMC-32-20GA | 2" | 2.1/2"-12 | 1.1/4" | 72.5 | 45.2 | 29.0 | 68 |
| JMC-32-24GA | 2" | 2.1/2"-12 | 1.1/2" | 74.5 | 45.2 | 33.0 | 68 |
| JMC-32-32GA | 2" | 2.1/2"-12 | 2" | 87.9 | 46.0 | 46.0 | 70 |
• Dimensions are for reference only. Subject to change.
