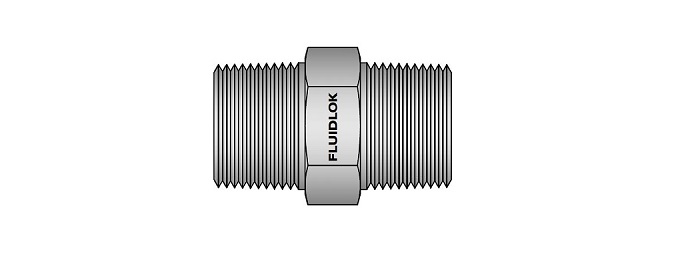

Hex Nipple - NPT X BSPT (Ref. 7030)
- Features: Pipe Fittings are designed as Leak-Free Connection meets the requirement of ASME/ANSI B1.20.1
- Size Range: 1/8” to 2”.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread & Metric Thread.

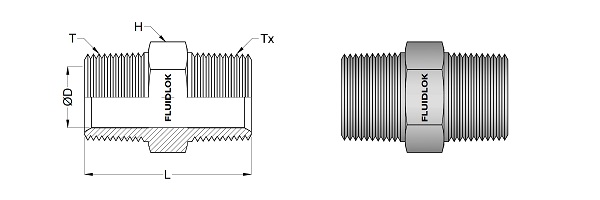

Hex Nipple - NPT X BSPT
|
FLUIDLOK Part Number |
T (NPT) |
Tx (BSPT) |
L (mm) |
∅ D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2-PHN-2RT | 1/8" | 1/8" | 26.9 | 4.8 | 7/16 |
| 4-PHN-4RT | 1/4" | 1/4" | 36.8 | 7.1 | 5/8 |
| 6-PHN-6RT | 3/8" | 3/8" | 36.8 | 10.3 | 3/4 |
| 8-PHN-8RT | 1/2" | 1/2" | 48.0 | 13.5 | 7/8 |
| 12-PHN-12RT | 3/4" | 3/4" | 49.8 | 18.3 | 1.1/8 |
| 16-PHN-16RT | 1" | 1" | 59.4 | 23.8 | 1.3/8 |
| 20-PHN-20RT | 1.1/4" | 1.1/4" | 63.0 | 31.7 | 1.3/4 |
| 24-PHN-24RT | 1.1/2" | 1.1/2" | 66.3 | 38.1 | 2 |
| 32-PHN-32RT | 2" | 2" | 71.6 | 49.2 | 2.1/2 |
• Dimensions are for reference only. Subject to change.
