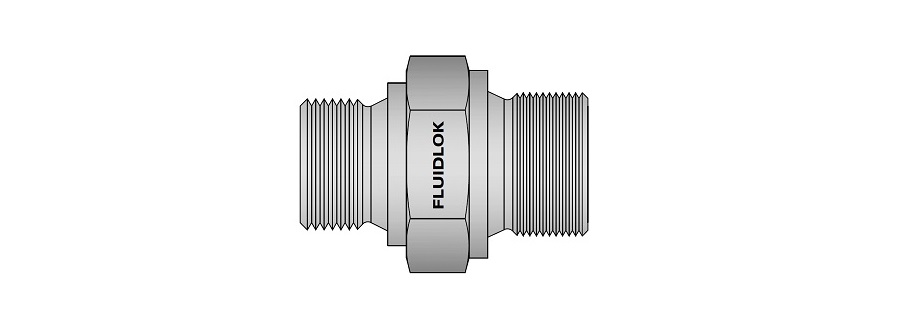

60° Cone Reducing Adaptor (Ref. 9022)
60° Cone Reducing Adaptor
|

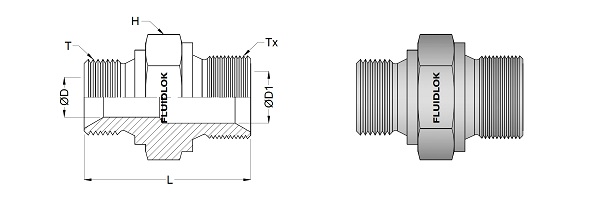

FLUIDLOK Part Number |
T (BSPP) |
Tx (BSPP) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (mm) |
|---|---|---|---|---|---|---|
| 2GA-CRA-4GA | 1/8" | 1/4" | 28.5 | 4.0 | 5.5 | 19 |
| 2GA-CRA-6GA | 1/8" | 3/8" | 31.0 | 4.0 | 8.0 | 22 |
| 2GA-CRA-8GA | 1/8" | 1/2" | 34.5 | 4.0 | 11.0 | 27 |
| 4GA-CRA-6GA | 1/4" | 3/8" | 34.5 | 5.5 | 8.0 | 22 |
| 4GA-CRA-8GA | 1/4" | 1/2" | 38.0 | 5.5 | 11.0 | 27 |
| 4GA-CRA-12GA | 1/4" | 3/4" | 42.0 | 5.5 | 17.0 | 32 |
| 6GA-CRA-8GA | 3/8" | 1/2" | 39.5 | 8.0 | 11.0 | 27 |
| 6GA-CRA-10GA | 3/8" | 5/8" | 43.5 | 8.0 | 14.3 | 30 |
| 6GA-CRA-12GA | 3/8" | 3/4" | 43.5 | 8.0 | 17.0 | 32 |
| 6GA-CRA-16GA | 3/8" | 1" | 48.5 | 8.0 | 22.0 | 41 |
| 8GA-CRA-10GA | 1/2" | 5/8" | 46.0 | 11.0 | 14.3 | 30 |
| 8GA-CRA-12GA | 1/2" | 3/4" | 46.0 | 11.0 | 17.0 | 32 |
| 8GA-CRA-16GA | 1/2" | 1" | 51.0 | 11.0 | 22.0 | 41 |
| 10GA-CRA-12GA | 5/8" | 3/4" | 48.0 | 14.3 | 17.0 | 32 |
| 12GA-CRA-16GA | 3/4" | 1" | 53.0 | 17.0 | 22.0 | 41 |
| 12GA-CRA-20GA | 3/4" | 1.1/4" | 56.0 | 17.0 | 29.0 | 50 |
| 16GA-CRA-20GA | 1" | 1.1/4" | 59.0 | 22.0 | 29.0 | 41 |
| 16GA-CRA-24GA | 1" | 1.1/2" | 62.0 | 22.0 | 33.0 | 55 |
| 16GA-CRA-32GA | 1" | 2" | 67.5 | 22.0 | 46.0 | 70 |
| 20GA-CRA-24GA | 1.1/4" | 1.1/2" | 63.0 | 29.0 | 33.0 | 55 |
| 20GA-CRA-32GA | 1.1/4" | 2" | 68.5 | 29.0 | 46.0 | 70 |
| 24GA-CRA-32GA | 1.1/2" | 2" | 70.5 | 33.0 | 46.0 | 70 |
• Dimensions are for reference only. Subject to change.
