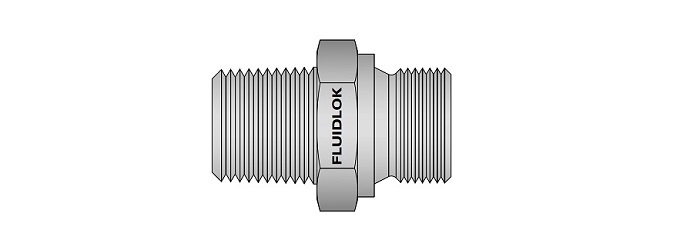

60° Cone Male Adaptor - BSPT (Ref. 9020)
60° Cone Male Adaptor - BSPT
|

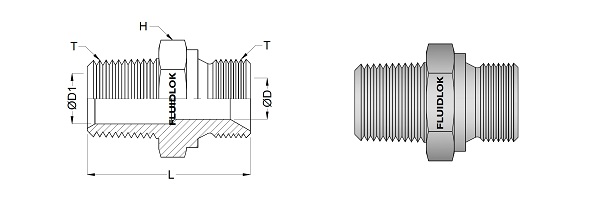

FLUIDLOK Part Number |
T (BSPT) |
Tx (BSPP) |
L (mm) |
∅ D (mm) |
∅ D1 (mm) |
H (mm) |
|---|---|---|---|---|---|---|
| CMA-2RT-2GA | 1/8" | 1/8" | 23.2 | 4.0 | 4.0 | 14 |
| CMA-2RT-4GA | 1/8" | 1/4" | 28.2 | 4.0 | 5.5 | 19 |
| CMA-2RT-6GA | 1/8" | 3/8" | 30.2 | 4.0 | 8.0 | 22 |
| CMA-4RT-2GA | 1/4" | 1/8' | 29.1 | 7.1 | 4.0 | 14 |
| CMA-4RT-4GA | 1/4" | 1/4" | 32.7 | 7.1 | 5.5 | 19 |
| CMA-4RT-6GA | 1/4" | 3/8" | 34.7 | 7.1 | 8.0 | 22 |
| CMA-4RT-8GA | 1/4" | 1/2" | 38.7 | 7.1 | 11.0 | 27 |
| CMA-6RT-2GA | 3/8" | 1/8" | 29.1 | 10.3 | 4.0 | 19 |
| CMA-6RT-4GA | 3/8" | 1/4" | 32.1 | 10.3 | 5.5 | 19 |
| CMA-6RT-6GA | 3/8" | 3/8" | 34.7 | 10.3 | 8.0 | 22 |
| CMA-6RT-8GA | 3/8" | 1/2" | 38.7 | 10.3 | 11.0 | 27 |
| CMA-6RT-12GA | 3/8" | 3/4" | 42.7 | 10.3 | 17.0 | 32 |
| CMA-8RT-4GA | 1/2" | 1/4" | 38.4 | 13.5 | 5.5 | 22 |
| CMA-8RT-6GA | 1/2" | 3/8" | 39.4 | 13.5 | 8.0 | 22 |
| CMA-8RT-8GA | 1/2" | 1/2" | 43.5 | 13.5 | 11.0 | 27 |
| CMA-8RT-10GA | 1/2" | 5/8" | 47.5 | 13.5 | 14.3 | 30 |
| CMA-8RT-12GA | 1/2" | 3/4" | 47.5 | 13.5 | 17.0 | 32 |
| CMA-8RT-16GA | 1/2" | 1" | 53.5 | 13.5 | 22.0 | 41 |
| CMA-12RT-6GA | 3/4" | 3/8" | 41.2 | 18.3 | 8.0 | 27 |
| CMA-12RT-12GA | 3/4" | 1/2" | 43.5 | 18.3 | 11.0 | 27 |
| CMA-12RT-10GA | 3/4" | 5/8" | 47.5 | 18.3 | 14.3 | 30 |
| CMA-12RT-12GA | 3/4" | 3/4" | 47.5 | 18.3 | 17.0 | 32 |
| CMA-12RT-16GA | 3/4" | 1" | 53.5 | 18.3 | 22.0 | 41 |
| CMA-16RT-8GA | 1" | 1/2" | 48.1 | 23.8 | 11.0 | 36 |
| CMA-16RT-12GA | 1" | 3/4" | 50.1 | 23.8 | 17.0 | 36 |
| CMA-16RT-16GA | 1" | 1" | 58.4 | 23.8 | 22.0 | 41 |
| CMA-16RT-20GA | 1" | 1.1/4" | 63.4 | 23.8 | 29.0 | 50 |
| CMA-20RT-12GA | 1.1/4" | 3/4" | 52.8 | 31.7 | 17.0 | 45 |
| CMA-20RT-16GA | 1.1/4" | 1" | 55.8 | 31.7 | 22.0 | 45 |
| CMA-20RT-20GA | 1.1/4" | 1.1/4" | 64.1 | 31.7 | 29.0 | 50 |
| CMA-20RT-24GA | 1.1/4" | 1.1/2" | 70.1 | 31.7 | 33.0 | 55 |
| CMA-24RT-20GA | 1.1/2" | 1.1/4" | 59.4 | 38.1 | 29.0 | 50 |
| CMA-24RT-24GA | 1.1/2" | 1.1/2" | 70.9 | 38.1 | 33.0 | 55 |
| CMA-24RT-32GA | 1.1/2" | 2" | 80.0 | 38.1 | 46.0 | 70 |
| CMA-32RT-24GA | 2" | 1.1/2" | 64.0 | 49.2 | 33.0 | 65 |
| CMA-32RT-32GA | 2" | 2" | 80.7 | 49.2 | 46.0 | 70 |
• Dimensions are for reference only. Subject to change.
