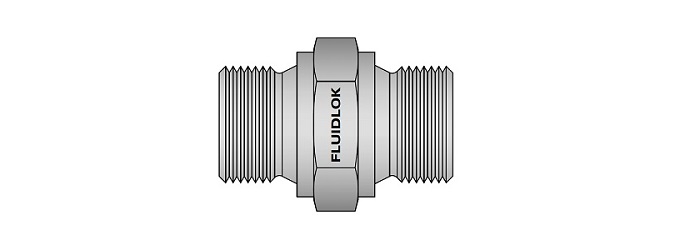

60° Cone Equal Adaptor (Ref. 9022)
60° Cone Equl Adaptor
|

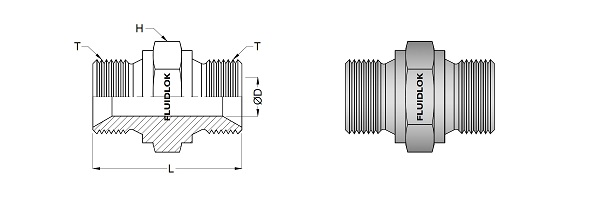

FLUIDLOK Part Number |
T (BSPP) |
L (mm) |
∅ D (mm) |
H (mm) |
|---|---|---|---|---|
| CEA-2GA | 1/8" | 24.0 | 4.0 | 14 |
| CEA-2GA | 1/4" | 32.0 | 5.5 | 19 |
| CEA-2GA | 3/8" | 36.0 | 8.0 | 22 |
| CEA-2GA | 1/2" | 42.0 | 11.0 | 27 |
| CEA-2GA | 5/8" | 48.0 | 14.3 | 30 |
| CEA-2GA | 3/4" | 48.0 | 17.0 | 32 |
| CEA-2GA | 1" | 56.0 | 22.0 | 41 |
| CEA-2GA | 1.1/4" | 60.0 | 29.0 | 50 |
| CEA-2GA | 1.1/2" | 65.0 | 33.0 | 55 |
| CEA-2GA | 2" | 74.0 | 46.0 | 70 |
• Dimensions are for reference only. Subject to change.
