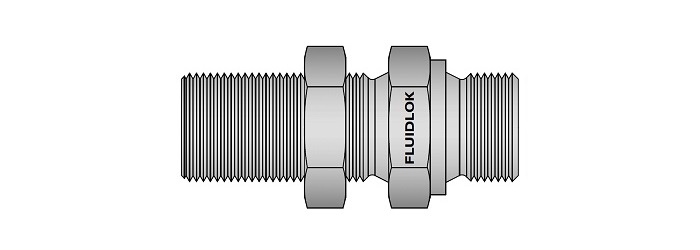

60° Cone Bulkhead Adaptor (Ref. 9722)

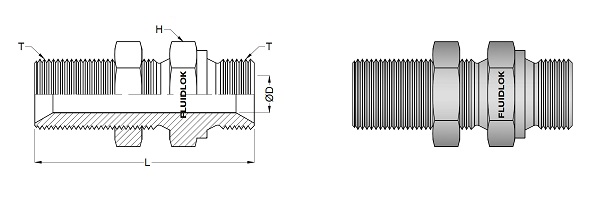

60° Cone Bulkhead Adaptor
|
FLUIDLOK Part Number |
T (BSPP) |
Tx (BSPP) |
L (mm) |
∅ D (mm) |
H (mm) |
|---|---|---|---|---|---|
| CBHA-2GA | 1/8" | 1/8" | 49.0 | 4.0 | 14 |
| CBHA-2GA | 1/4" | 1/4" | 53.0 | 5.5 | 19 |
| CBHA-2GA | 3/8" | 3/8" | 56.5 | 8.0 | 22 |
| CBHA-2GA | 1/2" | 1/2" | 65.0 | 11.0 | 27 |
| CBHA-2GA | 5/8" | 5/8" | 67.5 | 14.3 | 30 |
| CBHA-2GA | 3/4" | 3/4" | 71.5 | 17.0 | 32 |
| CBHA-2GA | 1" | 1" | 84.0 | 22.0 | 41 |
| CBHA-2GA | 1.1/4" | 1.1/4" | 89.5 | 29.0 | 50 |
| CBHA-2GA | 1.1/2" | 1.1/2" | 93.0 | 33.0 | 55 |
| CBHA-2GA | 2" | 2" | 97.5 | 46.0 | 70 |
• Dimensions are for reference only. Subject to change.
