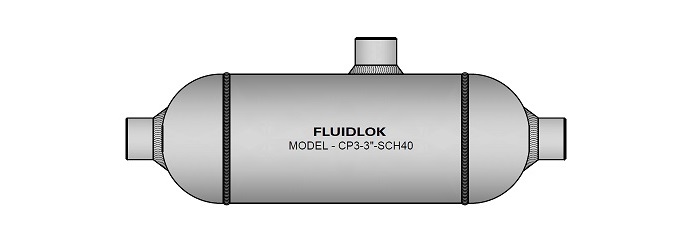

Condensate Pot - 3 Coupling


Application:

  • Condensing Chambers are largely used in steam metering lines to coil & condensate steam and to maintain a constant liquid head above instrument.
  • Condensate pot use as liquid or condensate traps, seal pots, vapour chambers & knockout pots.

Specifications:

  • Standard pressure rating up to 6000 psi (413 bars).
  • Pipe size 2", 3", 4" & larger size available upon request.
  • Schedule size 40, 80 & 160.
  • Material of constructon in SS316, SS304, CS, ASTM A106 Gr B.

Features:

  • 1/2" NPT furnished as per ANSI B1.20.1
  • Butt weld as per ANSI 16.9
  • Socket weld as per ANSI B16.11
  • All welding as per ASME Section IX.

Testing:

  • All chambers are 100% factory tested.

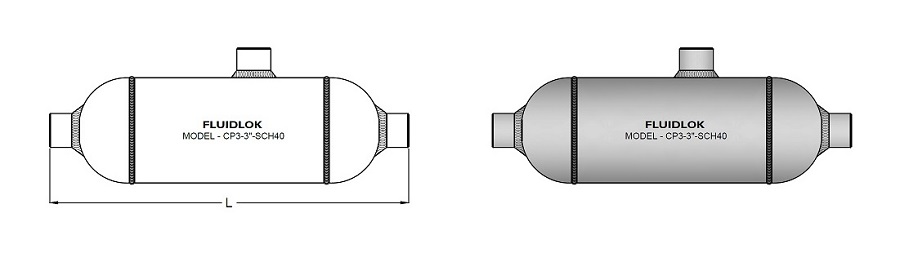

Condensate Pot - 3 Couplings
FLUIDLOK
Part Number
NB Size Schedule Designation
 ANSI / ASME
L
(mm)
CP3-3-SCH40 3" SCH 40 280
CP3-3-SCH80 3" SCH 80 280
CP3-3-SCH160 3" SCH 160 280
CP3-3-SCHXX 3" SCH XX 280
CP3-4-SCH40 4" SCH 40 355
CP3-4-SCH80 4" SCH 80 355
CP3-4-SCH160 4" SCH 160 355
CP3-4-SCHXX 4" SCH XX 355

• Dimensions are for reference only. Subject to change.
