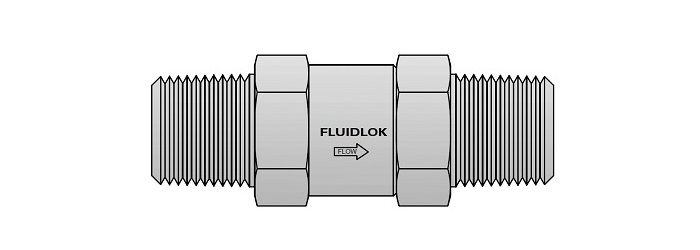

Check Valve - NPT Male X NPT Male
Application:
|
Specifications:
|
|
Features:
|
Testing:
|
Check Valve - NPT Male X NPT Male
|
FLUIDLOK Part Number |

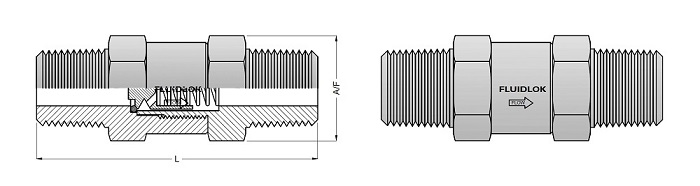

Inlet End Connection | L (mm) | A/F (mm) | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| CV-2N-M | 1/8" | 1/8" | 54 | 19.0 |
| CV-4N-M | 1/4" | 1/4" | 63 | 19.0 |
| CV-6N-M | 3/8" | 3/8" | 63 | 19.0 |
| CV-8N-M | 1/2" | 1/2" | 73 | 22.0 |
| CV-12N-M | 3/4" | 3/4" | 99 | 32.0 |
| CV-16N-M | 1" | 1" | 115 | 35.0 |
• Dimensions are for reference only. Subject to change.
