Check Valve - NPT Male X NPT Female


Application:

  •  These valves are used in process control, instrumentation and flow control applications.


Specifications:

  • Standard pressure rating up to 6000 psi (413 bars).

Features:

  • ABCD


Testing:

  • Each valve is 100% factory tested for cracking pressure & reseal.

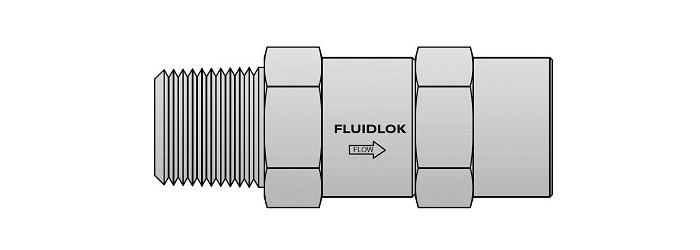

Check Valve - NPT Male X NPT Female
FLUIDLOK
Part Number

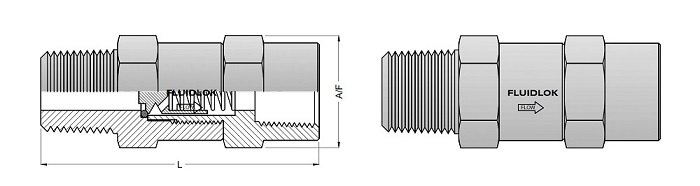

Inlet End Connection L (mm) A/F (mm)
Inlet Outlet
CV-2N-F 1/8" 1/8" 50 19.0
CV-4N-F 1/4" 1/4" 60 19.0
CV-6N-F 3/8" 3/8" 60 22.0
CV-8N-F 1/2" 1/2" 84 32.0
CV-12N-F 3/4" 3/4" 84 35.0
CV-16N-F 1" 1" 99 40.5

• Dimensions are for reference only. Subject to change.
