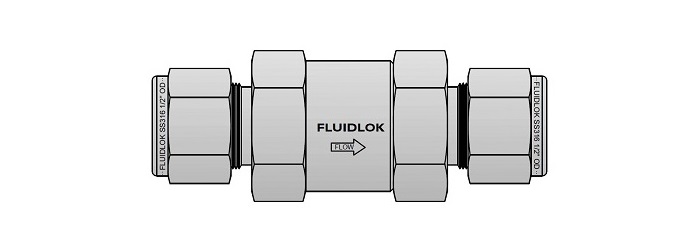

Check Valve - FLUIDLOK Tube OD X Tube OD
Application:
|
Specifications:
|
|
Features:
|
Testing:
|
Check Valve - FLUIDLOK Tube OD X Tube OD
|
FLUIDLOK Part Number |

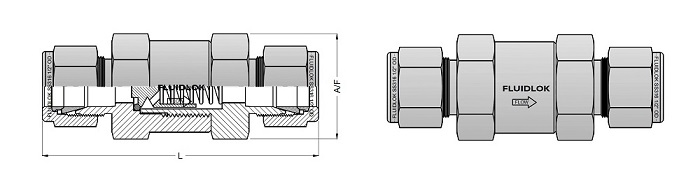

Inlet End Connection | L (mm) | A/F (mm) | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| CV-2T | 1/8" | 1/8" | 69 | 19.0 |
| CV-4T | 1/4" | 1/4" | 72 | 19.0 |
| CV-6T | 3/8" | 3/8" | 74 | 19.0 |
| CV-8T | 1/2" | 1/2" | 79 | 22.0 |
| CV-12T | 3/4" | 3/4" | 106 | 32.0 |
| CV-16T | 1" | 1" | 118 | 35.0 |
• Dimensions are for reference only. Subject to change.
