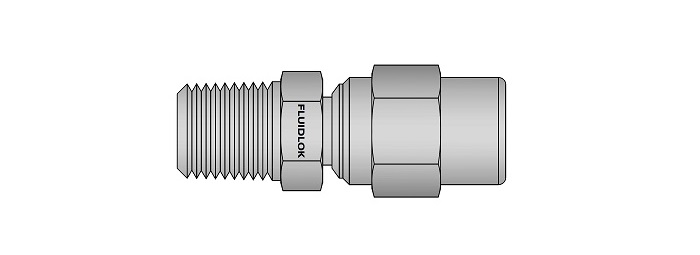

Purge Valve

Purge Valve
fluidlok information
csafwccvdsvfegtrvdv vacdfgdfgdf sdkhgsdjyhfg sdkfbsdkl fugs dictgsk jcnsd.k/cflnloichy8ic yhxz il;cnkld cn lois;xch;yA*OSc
Product Information

Application:

  • FLUIDLOK Purge Valves are designed for manually bleeding, venting or draining system fluid. The cap is crimmped to the valves body for safety in use.

Specifications:

  • Temperature rating for Stainless Steel is -65°F to 600°F (-54°C to 316°C), for Carbon Steel -20°F to 350°F (-29°C to 177°C) & for Brass -65°F to 400°F (-54°C to 204°C).
  • Pressure rating for Stainless Steel is 4000 psi (276 bar), for Carbon Steel & Brass is 3000 psi (207 bar).


Testing:

  • Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

Caution:

  • Open valve slowly.
  • These valves do not have cap thread seal.
  • When the valves are open media may flow through the cap. Direct the vent hole away from the person operating to protected from the system fluid.




Purge Valves
FLUIDLOK

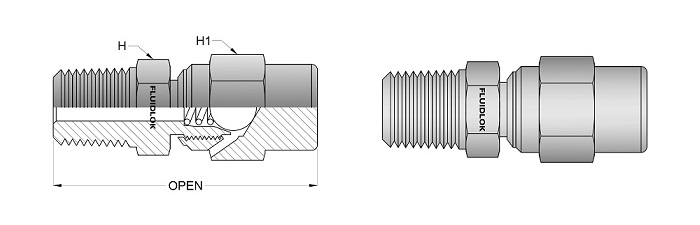

Part Number		 Inlet Connection Open
(mm)		 H
(Inch)		 H1
(Inch)
PGV-4N-M 1/4" NPT Male 45.4 9/16 5/8
PGV-6N-M 3/8" NPT Male 45.9 11/16 5/8
PGV-8N-M 1/2" NPT Male 52.2 7/8 5/8
PGV-4N-F 1/4" NPT Female 43.4 3/4 5/8
PGV-6N-F 3/8" NPT Female 45.1 7/8 5/8
PGV-8N-F 1/2" NPT Female 49.9 1.1/16 5/8
PGV-4T 1/4" FLUIDLOK Tube Fitting 48.7 9/16 5/8
PGV-6T 3/8" FLUIDLOK Tube Fitting 50.0 5/8 5/8
PGV-8T 1/2" FLUIDLOK Tube Fitting 54.9 13/16 5/8
• Dimensions are for reference only. Subject to change.
