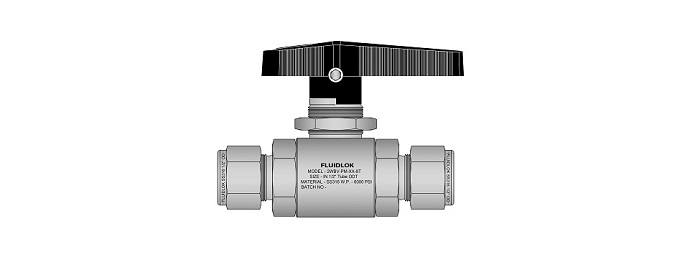

Panel Mount Ball Valve - FLUIDLOK Tube OD X Tube OD

Panel Mount Ball Valve - FLUIDLOK Tube OD X Tube OD
Product Information

Application:

  • These ball valves provide shut-off with quick ¼ turn open-close control of fluid utilised in process & instrumentation application.

Features:

  • Two-way pattern for ON-OFF service.
  • Three-way pattern for diverter service (not for shut-off).
  • Bi-directional floating ball design to ensure leak-proof shut-off.
  • Panel Mountable.
  • Low operating torque.
  • Positive handle stops.
  • Handle indicating flow direction.


Specifications:

  • Standard pressure rating up to 6000 psi (413 bars).
  • Standard DELRIN ball seat packing and optional PEEK or PCTFE ball seat packing.
  • Temperature rating for DELRIN packing 176°F (80°C), for PEEK packing 500°F (260°C) & PCTFE packing 500°F (260°C).

Testing:

  • Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
  • Pneumatic test: Seat - 1000 psi (69 bars).
  • Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

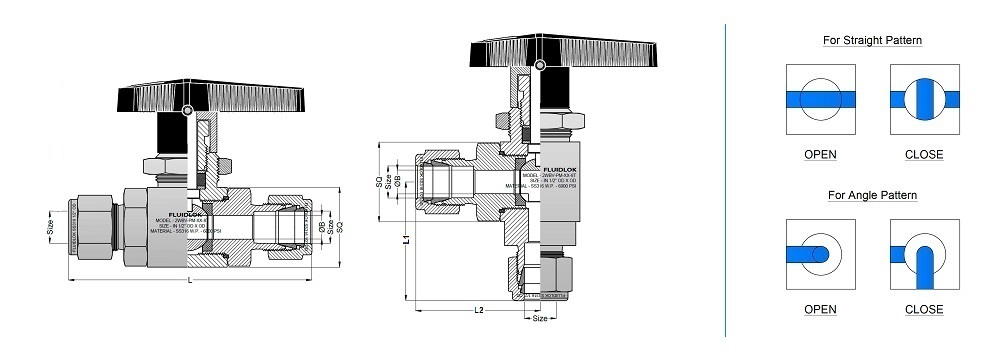

Panel Mount Ball Valve - FLUIDLOK Tube OD X Tube OD
FLUIDLOK Part Number End Connection SQ
(mm)		 ØB
(mm)		 L
(mm)		 L1
(mm)		 L2
(mm)
Straight Pattern Angle Pattern Size Size
2WBV-PM-4T ABV-PM-4T 1/4" 1/4" 25.4 4.7 80.2 40.1 40.1
2WBV-PM-6T ABV-PM-6T 3/8" 3/8" 25.4 6.0 83.1 41.5 41.5
2WBV-PM-8T ABV-PM-8T 1/2" 1/2" 32.0 9.5 95.3 47.7 47.7
2WBV-PM-12T ABV-PM-12T 3/4" 3/4" 38.0 15.0 100.6 50.3 50.3
2WBV-PM-16T ABV-PM-16T 1" 1" 50.0 20.0 125 62.5 62.5
• Dimensions are for reference only. Subject to change.
